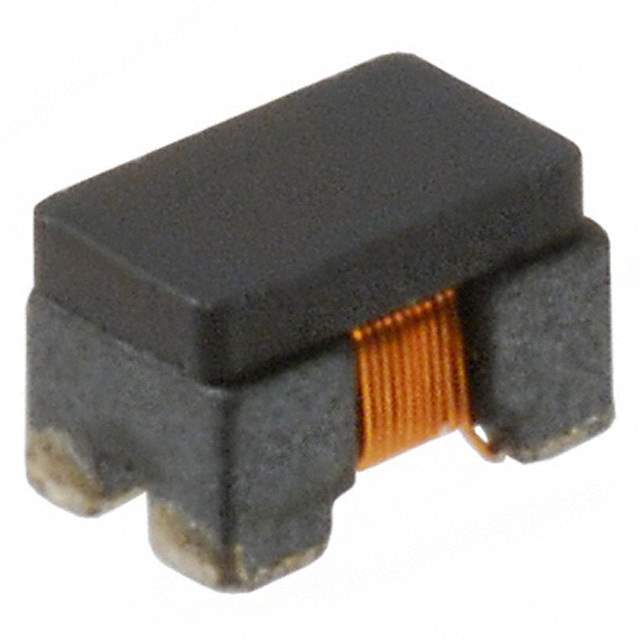

CM0805C161R-10 Real Image
Same model may have multiple batches, images only for reference.

CM0805C161R-10

Part No CM0805C161R-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 300MA 2LN 160 OHM SMD / 2 Line Common Mode Choke Surface Mount 160 Ohms @ 100 MHz 300mA DCR 350mOhm
Datasheet
CM0805C161R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 160 Ohms @ 100 MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 350mOhm
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) 0.047" (1.20mm)
Case / Package Horizontal, 4 PC Pad
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 240-2569-6,240-2569-2,CM0805C161R10,240-2569-1
Standard Package 2,000
Win Source Part Number 1328212-CM0805C161R-10
Ultra Librarian 3D Model Ultra Librarian CM0805C161R-10 CAD Model

Description

The CM0805C161R-10 is a common mode choke filter manufactured by Laird-Signal Integrity Products.

  • Size: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Height: 0.047" (1.20mm)
  • Current Rating: 300mA
  • Impedance: 160 Ohms @ 100 MHz
  • DCR: 350mOhm
  • Temperature Range: -40°C to 125°C
  • Compliance: ROHS3
