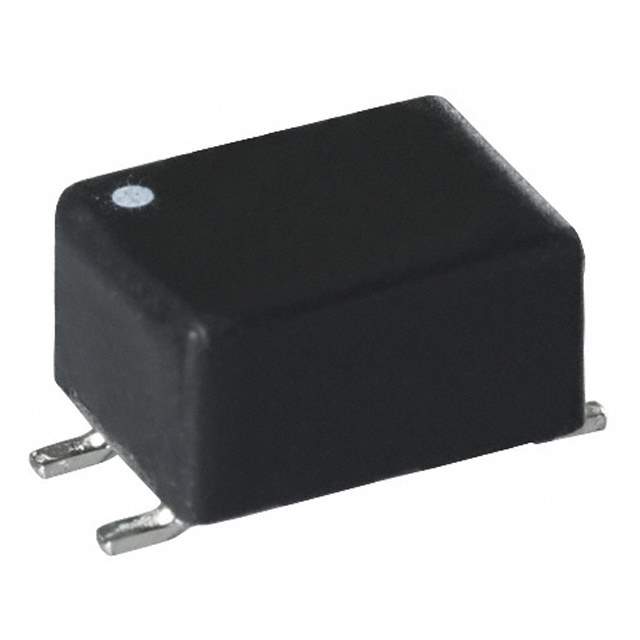

CC2824D225R-10

Part No CC2824D225R-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 2.2MH 500MA 2LN 5.3 KOHM SMD / TAPED AND REELED ON 13 REELS, 1500 PCS/REEL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Laird-Signal Integrity Products
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 5.3 kOhms at 5MHz
Inductance at Frequency 2.2mH at 10kHz
Current Rating (Maximum) 500mA
DC Resistance (DCR) (Maximum) 520mOhm
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Dimension 0.354" L x 0.217" W (9.00mm x 5.50mm)
Height (Maximum) 0.193" (4.90mm)
Manufacturer Package Horizontal, 4 Flat Lead
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804510-CC2824D225R-10
Ultra Librarian 3D Model Ultra Librarian CC2824D225R-10 CAD Model

Description

The Laird-Signal Integrity Products 804510-CC2824D225R-10 is a signal line filter designed to protect electronic circuits from electromagnetic interference.

  • Packaging: Reel
  • Mounting Style: SMD
  • Voltage Rating: 42V AC, 80V DC
  • Maximum Current Rating: 500mA
  • DC Resistance (DCR): 520mOhm
  • Impedance @ Frequency: 5.3 kOhms @ 5MHz
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.354" L x 0.217" W (9.00mm x 5.50mm)
  • Manufacturer Package: Horizontal, 4 flat lead
  • Height: 0.193" (4.90mm)
