Same model may have multiple batches, images only for reference.

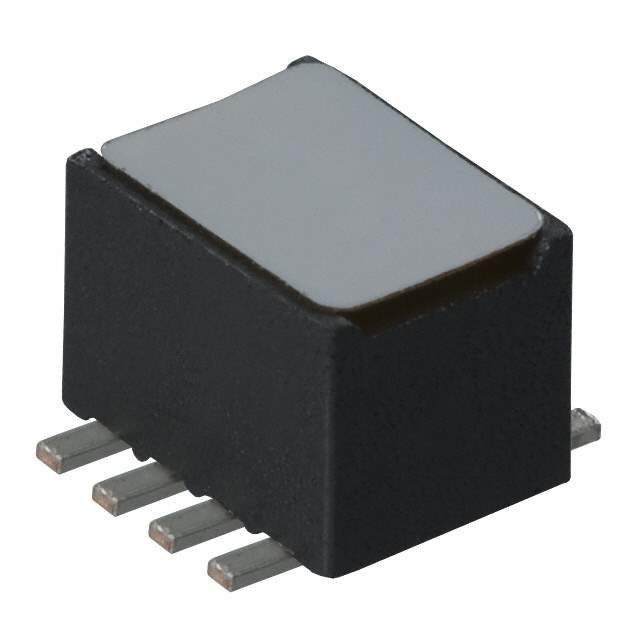

29F0418-1SR Real Image
Same model may have multiple batches, images only for reference.

29F0418-1SR

Part No 29F0418-1SR
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 119 OHM 8SMD 4LN
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Laird-Signal Integrity Products
Packaging Reel
Part Status Obsolete (End Of Life)
Filter Type Power Line
Number of Lines 4
Impedance at Frequency 119 Ohms at 100MHz
Current Rating (Maximum) 6A
DC Resistance (DCR) (Maximum) 10mOhm
Temperature Range - Operating -40°C ~ 125°C
Manufacturer Package 8-SMD, Flat Lead
Mounting Style SMD
Height (Maximum) 0.190" (4.83mm)
Dimension 0.240" L x 0.177" W (6.10mm x 4.50mm)
Manufacturer Pack Quantity 900
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804382-29F0418-1SR
Ultra Librarian 3D Model Ultra Librarian 29F0418-1SR CAD Model

Description

The Laird-Signal Integrity Products 804382-29F0418-1SR is a power line filter.

  • Maximum Current: 6A
  • DC Resistance (DCR): 10mOhm
  • Impedance @ 100MHz: 119 Ohms
  • Packaging: Reel
  • Height: 0.190" (4.83mm)
  • Lines: 4
  • Lifecycle Status: Obsolete (End of Life)
