Same model may have multiple batches, images only for reference.

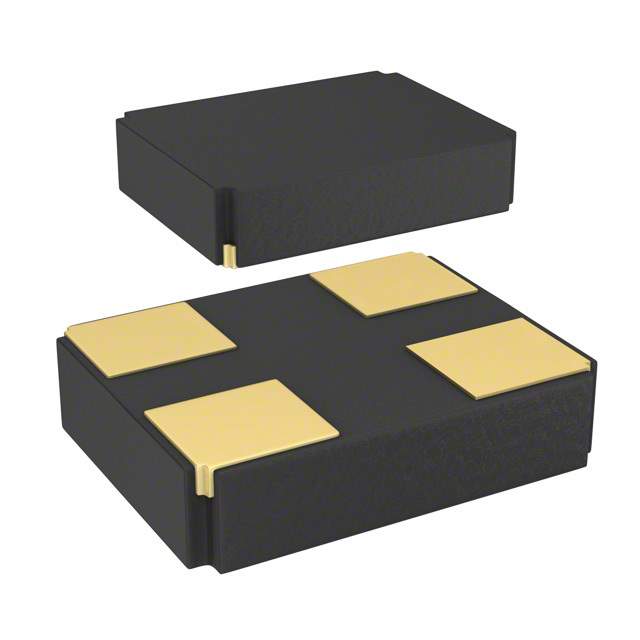

CX3225GB24000D0HEQCC Real Image
Same model may have multiple batches, images only for reference.

CX3225GB24000D0HEQCC

Part No CX3225GB24000D0HEQCC
Manufacturer Kyocera International Inc. Electronic Components
Catalog Oscillators
Description CRYSTAL 24.0000MHZ 8PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Estimated Pruduction Lead Time 29 Weeks
Features ±20ppm Crystal 8pF 4-SMD, No Lead
Manufacturer Kyocera International Inc. Electronic Components
Series CX3225GB, Kyocera
Package Reel - TR
Operating Temperature Range -10°C ~ 70°C
Mounting Surface Mount
Package 4-SMD, No Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Part Number 1253-1196-1, 1254-1196-1, 1253-1196-2, 1254-1196-1-ND, 1254-1196-6, 1253-1196-6, 1254-1196-6-ND
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916201-CX3225GB24000D0HEQCC
Ultra Librarian 3D Model Ultra Librarian CX3225GB24000D0HEQCC CAD Model

Description

The CX3225GB series crystal oscillator is a high-performance crystal oscillator designed for use in a wide range of applications. The oscillator features a ±20ppm crystal and an 8pF load capacitance.

  • Crystal: ±20ppm
  • Load Capacitance: 8pF
  • Temperature Range: -10°C to 70°C
  • Package: 4-SMD, no lead
  • Packaging: Reel
  • Manufacturer: Kyocera International Inc. Electronic Components
  • Market Status: Popular, high demand
  • REACH Regulations: Unaffected
