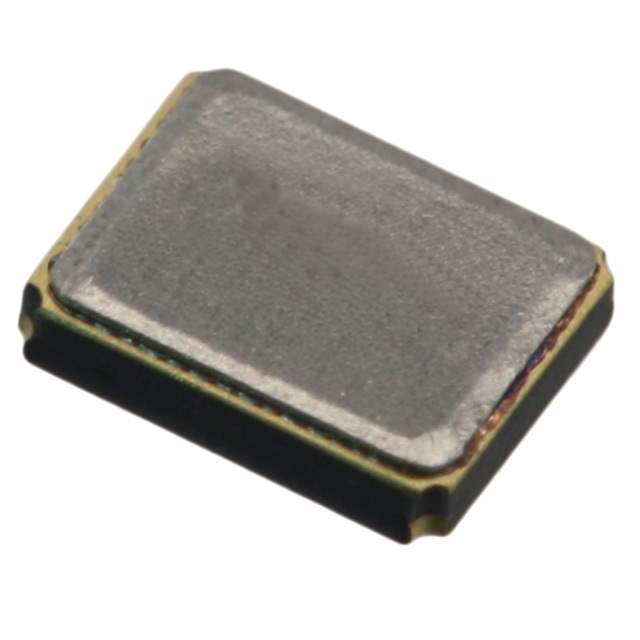

CX2520DB40000D0FLJCC Real Image
Same model may have multiple batches, images only for reference.

CX2520DB40000D0FLJCC

Part No CX2520DB40000D0FLJCC
Manufacturer Kyocera International Inc. Electronic Components
Catalog Oscillators
Description CRYSTAL 40.0000MHZ 8PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Features 40 MHz ±10ppm Crystal 8pF 50 Ohms 4-SMD, No Lead
Manufacturer Kyocera International Inc. Electronic Components
Series CX2520DB, Kyocera
Package Reel - TR
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount
Package 4-SMD, No Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Part Number 1253-1131-6, 1254-1131-6, 1253-1131-2, 1253-1131-1, 1254-1131-1, 1254-1131-1-ND, 1254-1131-6-ND
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916198-CX2520DB40000D0FLJCC
Ultra Librarian 3D Model Ultra Librarian CX2520DB40000D0FLJCC CAD Model

Description

The CX2520DB40000D0FLJCC is an electronic component produced by Kyocera International Inc. Electronic Components.

  • Series: CX2520DB
  • Type: Crystal
  • Frequency: 40 MHz ±10ppm
  • Package: 4-SMD, no lead
  • Package Quantity: 3000 pieces
  • Supply and Demand: Balanced
  • Operating Temperature Range: -30°C ~ 85°C
  • ECCN: EAR99 Compliant
