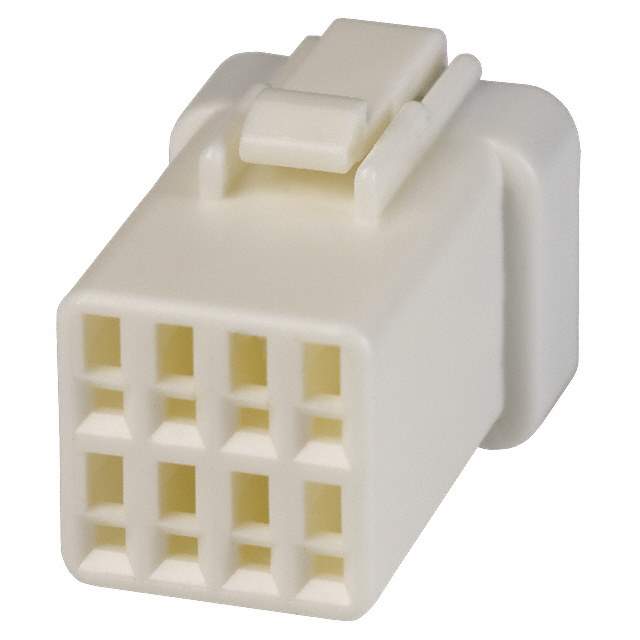

Same model may have multiple batches, images only for reference.

08R-JWPF-VSLE-D

Name: 08R-JWPF-VSLE-D
Brand: JST Sales America Inc.
SKU: 1285296
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	08R-JWPF-VSLE-D
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Housings
Mfr	JST Sales America Inc.
Series	JWPF
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	8
Pitch	0.079" (2.00mm)
Number of Rows	2
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Features	JIS C 0920 Grade Level 7
Note	Contacts Not Included
Base Product Number	08R-JWPF
Other Names	08RJWPFVSLED,455-1150
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1285296-08R-JWPF-VSLE-D
Ultra Librarian 3D Model	Ultra Librarian 08R-JWPF-VSLE-D CAD Model

Alternative Products

Description

The JWPF-VSLE-D from JST Sales America Inc. is a rectangular connector housing with 8 positions and a pitch of 0.079 inches (2.00mm).

Positions: 8
Pitch: 0.079 inches (2.00mm)
Contact Type: female socket
Fastening Type: latch lock
Connector Type: receptacle
Status: balance of supply and demand status
Feature: JIS C 0920 Grade Level 7 compliant
