Same model may have multiple batches, images only for reference.

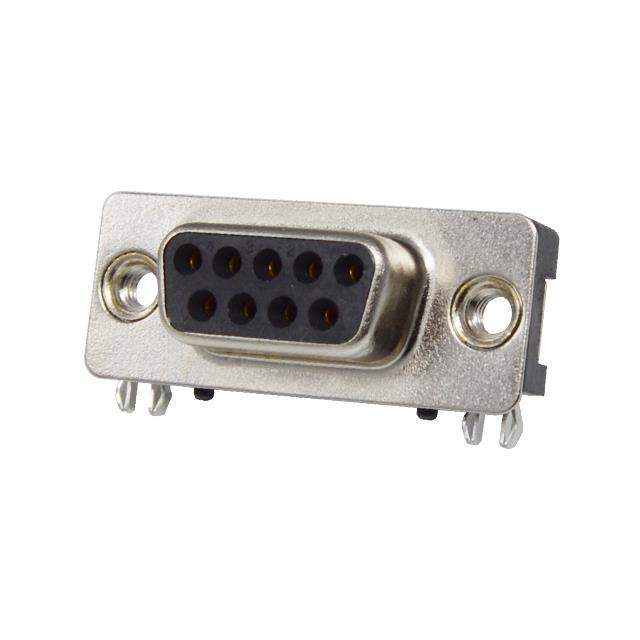

K202XHT-E9S-NJ Real Image
Same model may have multiple batches, images only for reference.

K202XHT-E9S-NJ

Part No K202XHT-E9S-NJ
Manufacturer Kycon, Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9P SMD R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
K202XHT-E9S-NJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Kycon, Inc.
Packaging Tube
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Surface Mount, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Features Board Lock
Voltage Rating 30V
Color Black
Dielectric Material Thermoplastic
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number K202XHT
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2092-K202XHT-E9S-NJ
Standard Package 15
Win Source Part Number 1333136-K202XHT-E9S-NJ
Ultra Librarian 3D Model Ultra Librarian K202XHT-E9S-NJ CAD Model

Description

The Kycon D-Sub Connector Assembly is the perfect solution for your interconnect needs.

  • Connector Type: Receptacle with Female Sockets
  • Board Lock: Yes
  • Voltage Rating: 30V
  • RoHS Compliant: Yes
  • Connector Material: Steel with Nickel Plated Finish
  • Mating Side: Female Screwlock (4-40)
  • Contact Material: Phosphor Bronze with Gold Finish
  • Contact Finish Thickness: Flash
  • Termination: Solder
  • Temperature Range: -55°C to 105°C
  • Current Rating: 2A
  • Shell Material: Thermoplastic
  • Mating Side Feature: Flange
  • Mounting: Surface Mount, Right-Angle
  • Positions: 9
  • Color: Black
  • Packaging: Tube
  • Industry: Electronic
