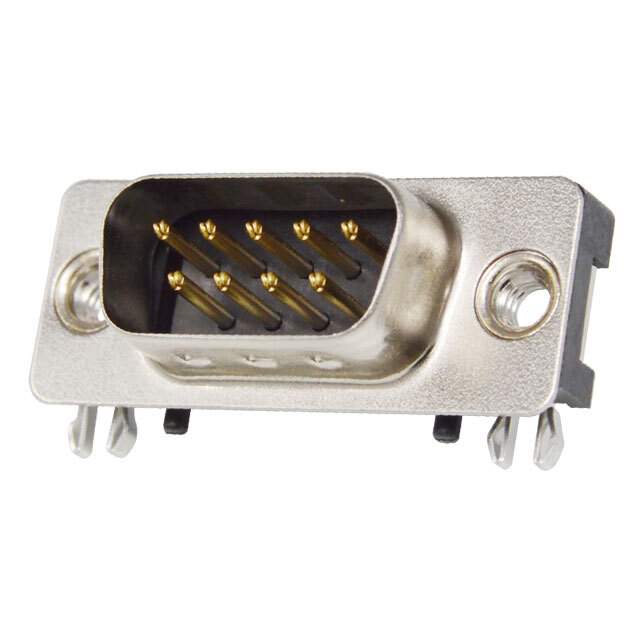

K202XHT-E9P-N Real Image
Same model may have multiple batches, images only for reference.

K202XHT-E9P-N

Part No K202XHT-E9P-N
Manufacturer Kycon, Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9P SMD R/A SLDR / 9 Position D-Sub Plug, Male Pins Connector
Datasheet
K202XHT-E9P-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Kycon, Inc.
Series K202XHT
Package Tube
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Surface Mount, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Features Board Lock, Grounding Indents
Voltage Rating 30V
Color Black
Dielectric Material Thermoplastic
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number K202XHT
Standard Package 15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337851-K202XHT-E9P-N
Ultra Librarian 3D Model Ultra Librarian K202XHT-E9P-N CAD Model

Description

The K202XHT-E9P-N D-Sub Connector Assembly is a 9-position plug with male pins that features board lock and grounding indents.

  • Positions: 9
  • Contact Gender: Male Pins
  • Features: Board Lock and Grounding Indents
  • Dielectric Material: Thermoplastic
  • Material Flammability: UL94 V-0
  • Shell Material: Steel, Nickel Plated
  • Contact Material: Phosphor Bronze
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -55°C ~ 105°C
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Series: K202XHT
  • Voltage Rating: 30V
  • Packaging: Tube
  • Current Rating: 2A
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Standard Package: 15 Pieces
