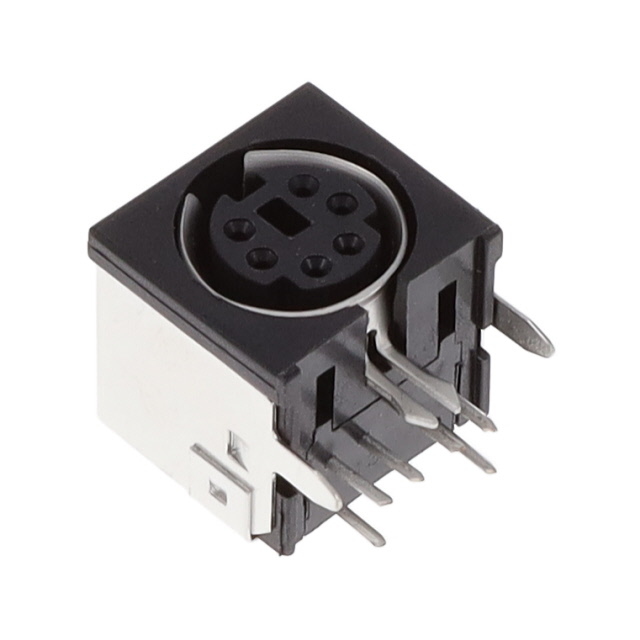

KCDX-5S-S2 Kycon, Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

KCDX-5S-S2

Part No KCDX-5S-S2
Manufacturer Kycon, Inc.
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE MINI DIN 5P SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle, Female Sockets
Number of Positions 5
Shell Size - Insert DIN
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Orientation Keyed
Primary Material Plastic
Shell Material Polybutylene Terephthalate (PBT)
Contact Finish - Mating Tin
Color Black, Silver
Material Flammability Rating UL94 V-0
Features Board Guide
Shielding Shielded
Current Rating (Amps) 2A
Voltage Rating 24VDC
Temperature Range - Operating -25°C ~ 85°C
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1614857-KCDX-5S-S2
Ultra Librarian 3D Model Ultra Librarian KCDX-5S-S2 CAD Model
