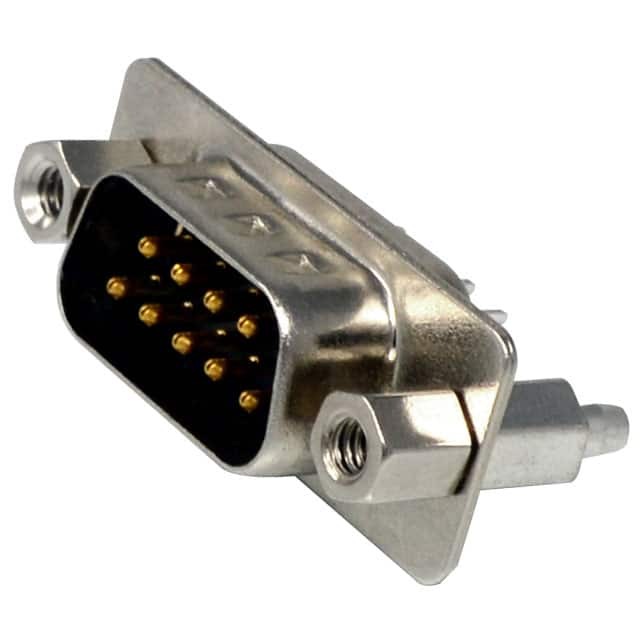

K85X-ED-9P-BRJ
Same model may have multiple batches, images only for reference.

K85X-ED-9P-BRJ

Part No K85X-ED-9P-BRJ
Manufacturer Kycon, Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS VERT SLDR / 9 Position D-Sub Plug, Male Pins Connector
Datasheet
K85X-ED-9P-BRJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Kycon, Inc.
Series K85X
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Board Side (4-40); Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Features Board Lock, Grounding Indents
Voltage Rating 30V
Color Black
Contact Form Stamped
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number K85X-ED
Standard Package 56 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 876311-K85X-ED-9P-BRJ
Ultra Librarian 3D Model Ultra Librarian K85X-ED-9P-BRJ CAD Model

Description

The K85X series D-Sub Connector Assemblies are high-quality connectors used in various electronic applications. Manufactured by Kycon, Inc.

  • Connector Type: Plug with Male Pins
  • Color: Black
  • Positions: 9
  • Rows: 2
  • Contact Type: Signal
  • Termination: Solder
  • Contact Finish: Gold (flash thickness)
  • Package: Tray (56 pieces)
  • Voltage Rating: 30V
  • Contact Material: Brass
  • Shell Material: Steel
