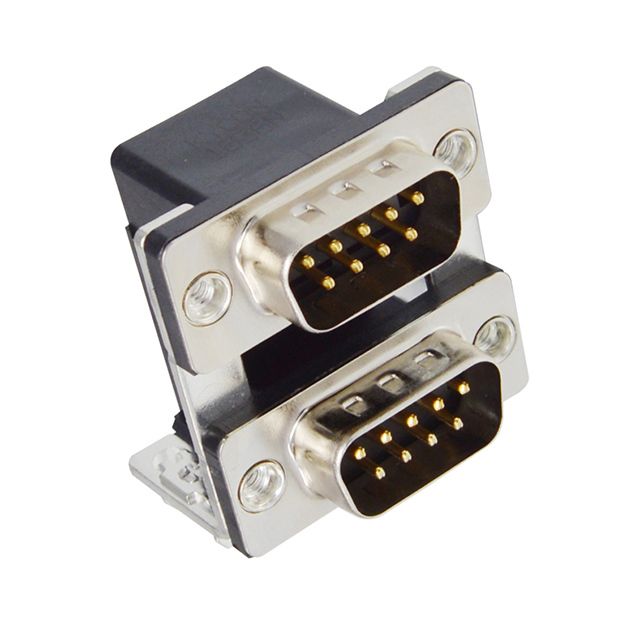

K42X-E9P/P-A4N Kycon, Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

K42X-E9P/P-A4N

Part No K42X-E9P/P-A4N
Manufacturer Kycon, Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS R/A SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsD-Sub, D-Shaped ConnectorsD-Sub Connector Assemblies
Mfr Kycon, Inc.
Series K42X
Packaging Tray
Part Status Active
Connector Style D-Sub - Stacked
Connector Type Plug, Male Pins
Number of Positions 9, 9
Number of Rows 2, 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E); 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Grounding Indents, Mounting Brackets
Voltage Rating 30V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Brass
Operating Temperature -55°C ~ 105°C
Base Product Number K42X-E9P
Ultra Librarian 3D Model Ultra Librarian K42X-E9P/P-A4N CAD Model
