BCMA4532-901N KOHER（Shanghai）Electronics Co.,Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

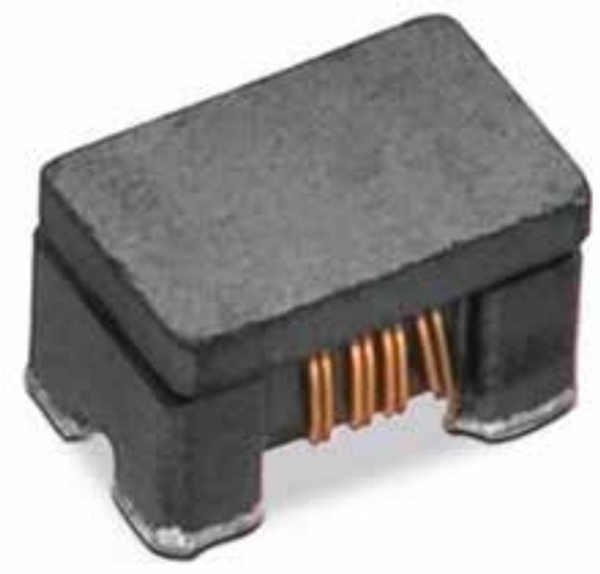

BCMA4532-901N

Part No BCMA4532-901N
Manufacturer KOHER（Shanghai）Electronics Co.,Ltd
Catalog Common Mode Chokes
Description CMC 650Ω@100MHz  2300mA  0.07Ω
Datasheet
BCMA4532-901N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Common Mode Chokes
Z@100MHz(Ω) 900Ω
Saturation Current 2300mA
DC Resistance 0.07Ω
Application Radiated noise suppression for car multimedia interfaces (MOST, USB2.0, IDB-1394, etc.)
Soldering Reflow
Preheat condition 150 ~200℃/60~180 sec.
Allowed time above 217℃ 60~150 sec.
Max temperature 260℃.
Max time at max temperature 10 sec.
Allowed Reflow time 3x max
Operating temperature range -40 to +125 C"
Quantity 500pcs
Ultra Librarian 3D Model Ultra Librarian BCMA4532-901N CAD Model
