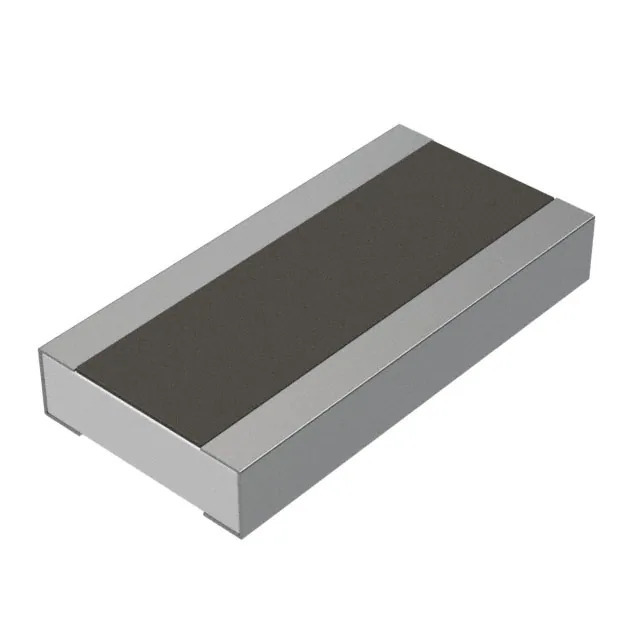

Same model may have multiple batches, images only for reference.
WK73S2JTTE3R30F KOA Speer
Same model may have multiple batches, images only for reference.

WK73S2JTTE3R30F

Part No WK73S2JTTE3R30F
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 3.3 OHM 1% 1W 1812
Datasheet
WK73S2JTTE3R30F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series WK73S
Package Tape & Reel
Product Status Not For New Designs
Resistance 3.3 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Wide 1812 (4532 Metric), 1218
Supplier Device Package 1218
Ratings AEC-Q200
Size / Dimension 0.122" L x 0.181" W (3.10mm x 4.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number WK73S2J
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1380279-WK73S2JTTE3R30F
Ultra Librarian 3D Model Ultra Librarian WK73S2JTTE3R30F CAD Model

Description

The WK73S2JTTE3R30F is a chip resistor from KOA Speer Electronics, Inc.

  • Series: WK73S
  • Package: Wide 1812 (4532 Metric), 1218
  • Resistance: 3.3 Ohms
  • Power Rating: 1W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Operating Temperature: -55°C to 155°C
  • Compliance: Automotive AEC-Q200 Compliant, Moisture Resistant
  • Packaging: Tape and Reel
  • Status: Not Recommended for New Designs
  • REACH: Unaffected
  • ECCN: EAR99
