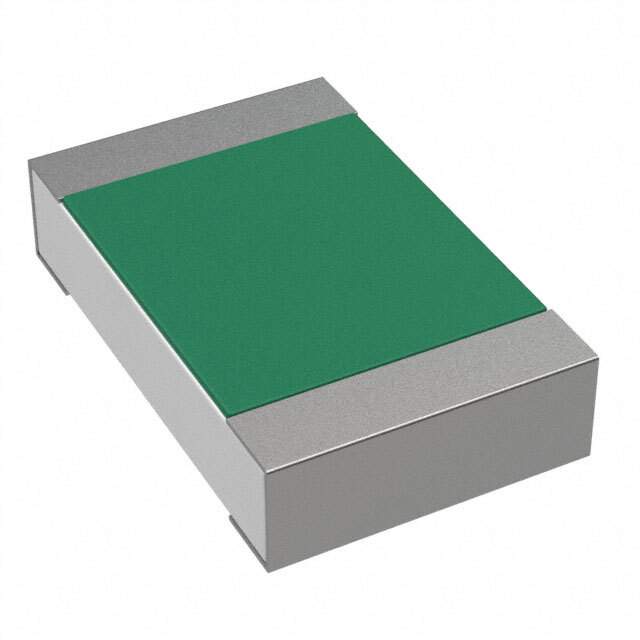

SG73P2ATTD1501F Real Image
Same model may have multiple batches, images only for reference.

SG73P2ATTD1501F

Part No SG73P2ATTD1501F
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 1.5K OHM 1% 1/4W 0805 / 1.5 kOhms ±1% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Datasheet
SG73P2ATTD1501F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer KOA Speer Electronics, Inc.
Packaging Reel - TR
Resistance 1.5 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Base Product Number SG73P2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 2019-SG73P2ATTD1501FCT,2019-SG73P2ATTD1501FTR,2019-SG73P2ATTD1501FDKR
Standard Package 5,000
Win Source Part Number 1326993-SG73P2ATTD1501F
Ultra Librarian 3D Model Ultra Librarian SG73P2ATTD1501F CAD Model

Description

The KOA Speer Electronics, Inc. SG73P2ATTD1501F chip resistor, manufactured by KOA Speer Electronics, Inc., is a high-quality electronic component that is ideal for use in automotive applications.

  • Application: Automotive applications
  • Pulse Applications: Designed to withstand
  • Tolerance: +/- 1%
  • Temperature Coefficient: +/- 100ppm/°C
  • Power Rating: 0.25W
  • Resistance: 1.5 kOhms
  • Terminations: Two
  • Package Size: 0805 (2012 Metric)
  • Temperature Range: -55°C to 155°C
  • AEC-Q200 Rated: Yes
  • Composition: Thick film
  • Packaging: Reel
  • Standard Package: 5,000
