Same model may have multiple batches, images only for reference.

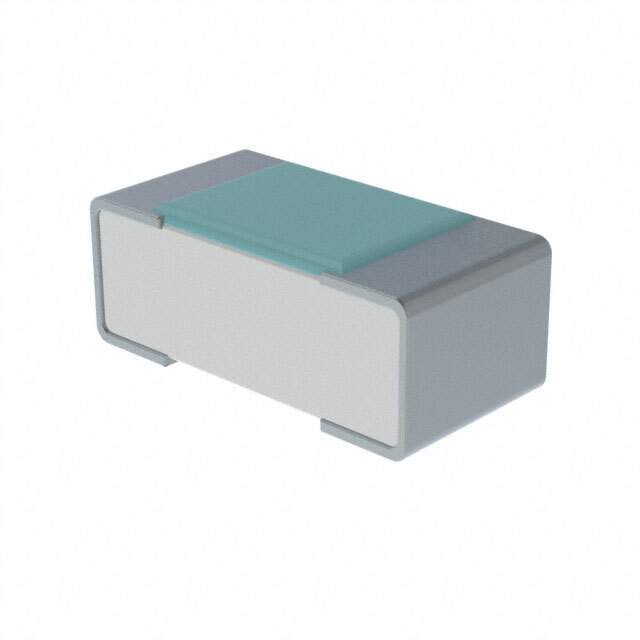

RK73H1ETTP5600F Real Image
Same model may have multiple batches, images only for reference.

RK73H1ETTP5600F

Part No RK73H1ETTP5600F
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 560 OHM 1% 1/10W 0402  /  560 Ohms ±1% 0.1W, 1/10W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant Thick Film
Datasheet
RK73H1ETTP5600F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series RK73H
Package Tape & Reel
Resistance 560 Ohms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Features Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings AEC-Q200
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Base Product Number RK73H1E
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2019-RK73H1ETTP5600FTR,2019-RK73H1ETTP5600FDKR,2019-RK73H1ETTP5600FCT
Standard Package 10,000
Win Source Part Number 1110766-RK73H1ETTP5600F
Ultra Librarian 3D Model Ultra Librarian RK73H1ETTP5600F CAD Model

Description

The TDK Corporation RK73H1ETTP5600F is a chip resistor that is used in electronic circuits. This component has a resistance of 560 Ohms and a maximum power rating of 0.1W.

  • Resistance: 560 Ohms
  • Maximum Power Rating: 0.1W
  • Mounting: surface-mount
  • Packaging: tape and reel
  • AEC-Q200 Compliant: Yes
  • Manufacturer: TDK Corporation
  • Application: a wide range of electronic devices
