Same model may have multiple batches, images only for reference.

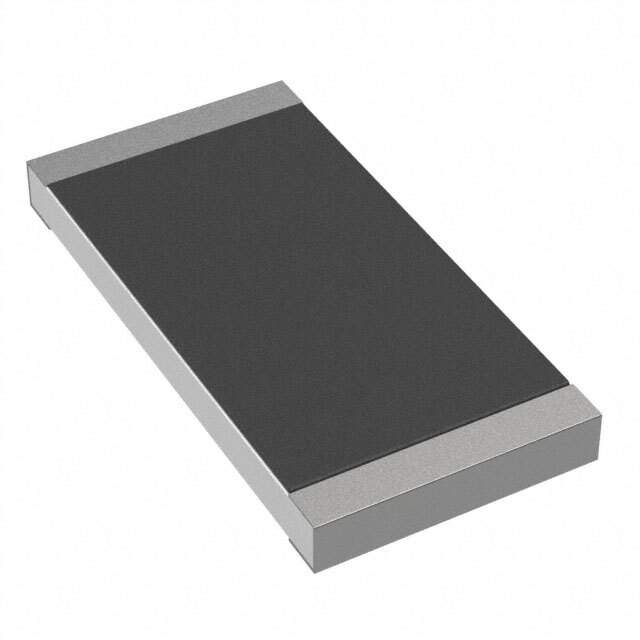

HV733ATTE1003F Real Image
Same model may have multiple batches, images only for reference.

HV733ATTE1003F

Part No HV733ATTE1003F
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 100K OHM 1% 1W 2512 / 100 kOhms ±1% 1W Chip Resistor 2512 (6432 Metric) High Voltage, Moisture Resistant Thick Film
Datasheet
HV733ATTE1003F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series HV73
Package Tape & Reel
Resistance 100 kOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features High Voltage, Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.248" L x 0.122" W (6.30mm x 3.10mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number HV733A
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1338032-HV733ATTE1003F
Ultra Librarian 3D Model Ultra Librarian HV733ATTE1003F CAD Model

Description

The HV73 series from KOA Speer is a 1W, 100 kOhms thick film chip resistor designed for surface mount applications.

  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Package / Case: 2512 (6432 Metric)
  • Size / Dimension: 0.248" L x 0.122" W (6.30mm x 3.10mm)
  • Height - Seated: 0.028" (0.70mm)
  • Packaging: Tape & Reel
  • Quantity: 4,000 pieces
  • Feature: Moisture Resistant, High Voltage
  • Operating Temperature: -55°C to 155°C
