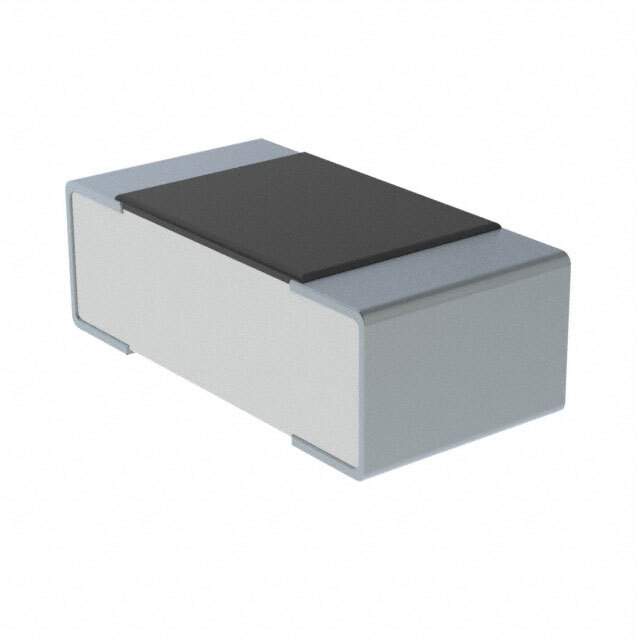

Same model may have multiple batches, images only for reference.

HV731JTTD1203F

Name: HV731JTTD1203F
Brand: KOA Speer
SKU: 1337413
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HV731JTTD1203F
Manufacturer	KOA Speer
Catalog	Chip Resistor - Surface Mount
Description	RES 120K OHM 1% 1/10W 0603 / 120 kOhms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) High Voltage, Moisture Resistant Thick Film
Datasheet	HV731JTTD1203F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors - Chip Resistor - Surface Mount
Mfr	KOA Speer Electronics, Inc.
Series	HV73
Package	Tape & Reel
Resistance	120 kOhms
Tolerance	±1%
Power (Watts)	0.1W, 1/10W
Composition	Thick Film
Features	High Voltage, Moisture Resistant
Temperature Coefficient	±100ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)	0.022" (0.55mm)
Number of Terminations	2
Base Product Number	HV731J
Standard Package	5,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0030
Win Source Part Number	1337413-HV731JTTD1203F
Ultra Librarian 3D Model	Ultra Librarian HV731JTTD1203F CAD Model

Description

The HV73 series chip resistor is a high voltage, moisture-resistant resistor manufactured by KOA Speer Electronics, Inc.

Tolerance: ±1%
Temperature Coefficient: ±100ppm/°C
Standard Package: 5,000
Power Rating: 0.1W, 1/10W
Composition: Thick Film
Terminations: 2
Resistance: 120 kOhms
Package/Case: 0603 (1608 Metric)
Temperature Range: -55°C to 155°C
