Same model may have multiple batches, images only for reference.

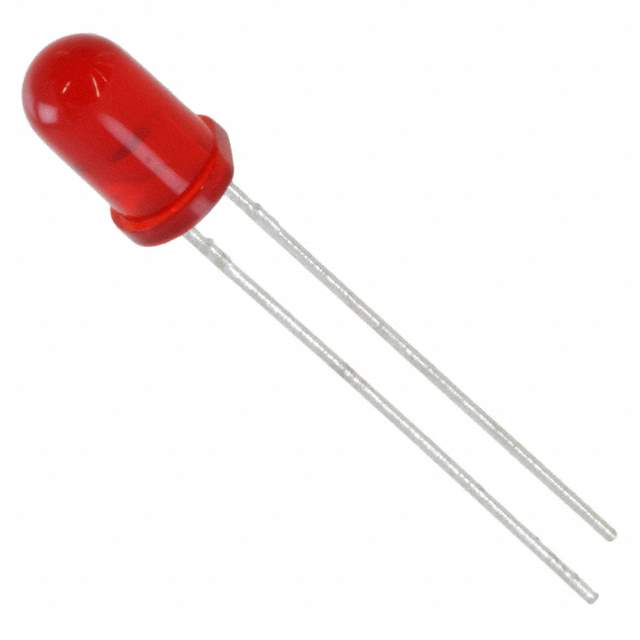

WP7113ID Real Image
Same model may have multiple batches, images only for reference.

WP7113ID

Part No WP7113ID
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED RED DIFFUSED T-1 3/4 T/H / Red 617nm LED Indication - Discrete 2V Radial
Datasheet
WP7113ID Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Bulk
Color Red
Configuration Standard
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 40mcd
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 30°
Mounting Type Through Hole
Wavelength - Dominant 617nm
Wavelength - Peak 627nm
Package / Case Radial
Supplier Device Package T-1 3/4
Height (Max) 8.60mm
Base Product Number WP7113
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1264
Standard Package 1,000
Win Source Part Number 1015654-WP7113ID
Ultra Librarian 3D Model Ultra Librarian WP7113ID CAD Model

Description

The Kingbright WP7113ID is a red LED indication device that has a millicandela rating of 40mcd.

  • Millicandela Rating: 40mcd
  • Viewing Angle: 30°
  • Lens Color: Red
  • Lens Transparency: Diffused
  • Voltage Forward: 2V
  • Peak Wavelength: 627nm
  • Dominant Wavelength: 617nm
  • Height: 8.60mm
  • Lens Style: Round, Domed Top
  • Lens Size: 5mm, T-1 3/4
  • Package/Case: Radial
  • Mounting: Through-Hole
  • Supplier Device Package: T-1 3/4
