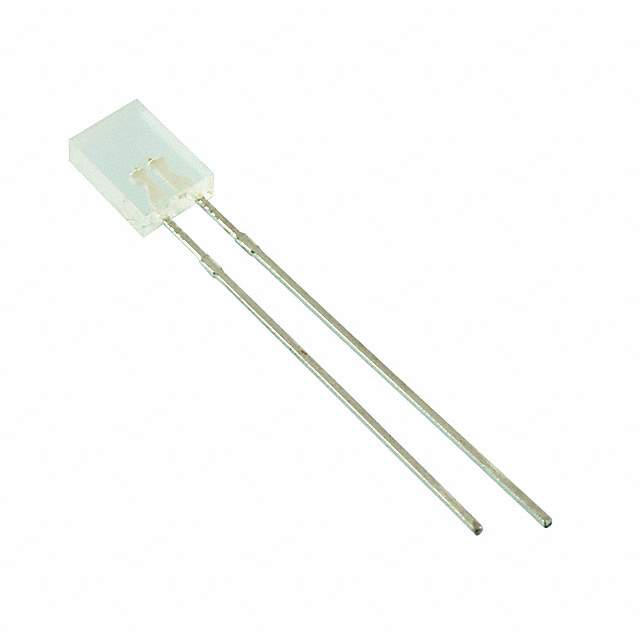

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Kingbright
Package Bulk
Color Green, Red
Configuration Bidirectional
Lens Color White
Lens Transparency Diffused
Millicandela Rating 6mcd Green, 4mcd Red
Lens Style Rectangle with Flat Top
Lens Size 5.00mm x 2.00mm
Voltage - Forward (Vf) (Typ) 2.2V Green, 2V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 110°
Mounting Type Through Hole
Wavelength - Dominant 568nm Green, 617nm Red
Wavelength - Peak 565nm Green, 627nm Red
Package / Case Radial
Supplier Device Package Rectangular 2mmx5mm
Size / Dimension 5.00mm L x 2.00mm W
Height (Max) 7.00mm
Base Product Number WP117
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1350722-WP117EGWT
Ultra Librarian 3D Model Ultra Librarian WP117EGWT CAD Model

Description

The Kingbright WP117EGWT is a bidirectional LED indication discrete module with a viewing angle of 110 degrees.

  • Type: LED Indication, Bidirectional
  • Viewing Angle: 110 degrees
  • Package: 2mm x 5mm Radial
  • Lens Style: Rectangle with Flat Top
  • Millicandela Rating (Green): 6mcd
  • Millicandela Rating (Red): 4mcd
  • Dominant Wavelength (Green): 568nm
  • Peak Wavelength (Green): 565nm
  • Dominant Wavelength (Red): 617nm
  • Peak Wavelength (Red): 627nm
  • Forward Voltage (Green): 2.2V @ 20mA
  • Forward Voltage (Red): 2V @ 20mA
