Same model may have multiple batches, images only for reference.

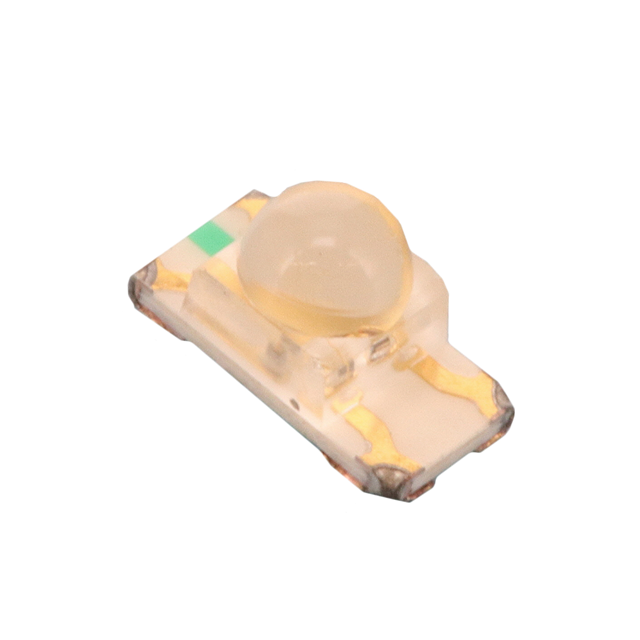

APTBD3216SURKCGKC-01 Real Image
Same model may have multiple batches, images only for reference.

APTBD3216SURKCGKC-01

Part No APTBD3216SURKCGKC-01
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED SMD / Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red 1206 (3216 Metric)
Datasheet
APTBD3216SURKCGKC-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Series Heli-R
Package Tape & Reel
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 250mcd Green, 600mcd Red
Lens Style Round with Domed Top
Lens Size 1.60mm Dia
Voltage - Forward (Vf) (Typ) 2.1V Green, 1.95V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 30°
Mounting SMD (SMT)
Wavelength - Dominant 570nm Green, 630nm Red
Wavelength - Peak 574nm Green, 645nm Red
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 3.20mm L x 1.60mm W
Height (Max) 2.00mm
Base Product Number APTBD3216
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-APTBD3216SURKCGKC-01TR,754-APTBD3216SURKCGKC-01CT,754-APTBD3216SURKCGKC-01DKR
Standard Package 2,000
Win Source Part Number 983829-APTBD3216SURKCGKC-01
Ultra Librarian 3D Model Ultra Librarian APTBD3216SURKCGKC-01 CAD Model

Description

The Kingbright APTBD3216SURKCGKC-01 is a green and red LED indication discrete electronic component that is ideal for optoelectronics projects.

  • Series: Heli-R
  • Package: Tape and Reel
  • Category: Optoelectronics
  • ECCN: EAR99
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
  • Also Known As: 754-APTBD3216SURKCGKC-01TR, 754-APTBD3216SURKCGKC-01CT, and 754-APTBD3216SURKCGKC-01DKR
  • Voltage-Forward Rating: 2.1V (Green) and 1.95V (Red)
  • Current-Test: 20mA
  • Dominant Wavelength: 570nm (Green) and 630nm (Red)
  • Peak Wavelength: 574nm (Green) and 645nm (Red)
  • Millicandela Rating: 250mcd (Green) and 600mcd (Red)
  • Package/Case: 1206 (3216 Metric)
  • Dimension: 3.20mm L x 1.60mm W
