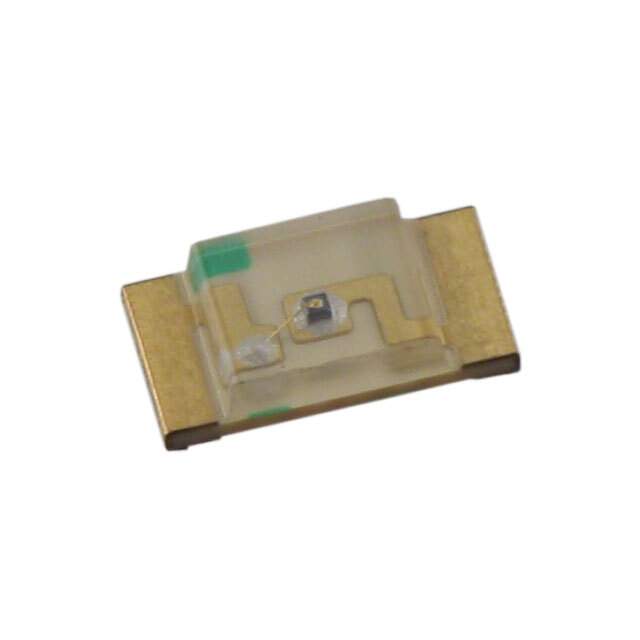

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Product Status Obsolete
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 30mcd
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ) 1.85V
Current - Test 20mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 640nm
Wavelength - Peak 655nm
Package / Case 1206 (3216 Metric)
Supplier Device Package Chip LED
Dimension 3.20mm L x 1.60mm W
Height (Max) 0.75mm
Base Product Number APT3216
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names Q4855374K,754-1142-1,754-1142-2,754-1142-6
Standard Package 2,000
Win Source Part Number 1150425-APT3216SRCPRV
Ultra Librarian 3D Model Ultra Librarian APT3216SRCPRV CAD Model

Description

The APT3216SRCPRV is an obsolete electronic component that has been replaced by alternative parts.

  • Type: Red LED indication discrete
  • Viewing Angle: 120°
  • Millicandela Rating: 30mcd
  • Mounting: SMD (SMT)
  • Package/Case: 1206 (3216 Metric)
  • Manufacturer: Kingbright
  • Win Source Part Number: 1150425
