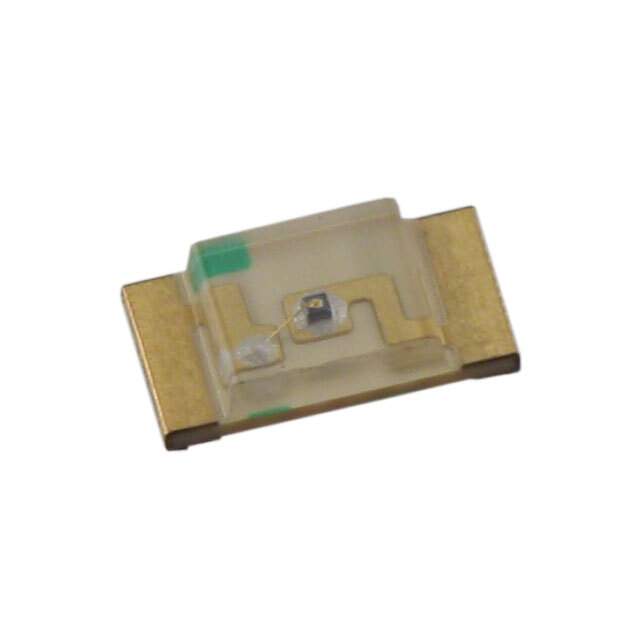

APT3216CGCK Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Kingbright
Packaging Reel package
Color Green
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 50mcd
Lens Style/Size Rectangle with Flat Top, 2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 120°
Mounting SMD
Wavelength - Dominant 570nm
Wavelength - Peak 574nm
Package 1206 (3216 Metric)
Manufacturer Package Chip LED
Dimension 3.20mm L x 1.60mm W
Height (Maximum) 0.75mm
Win Source Part Number 768692-APT3216CGCK
Popularity Medium
Supply and Demand Status Balance
Family Name APT3216CGCK
Introduction Date May 09, 2007
ECCN EAR99
Country of Origin China
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian APT3216CGCK CAD Model

Description

The Kingbright APT3216CGCK is a chip LED manufactured by Kingbright.

  • Viewing Angle: 120°
  • Millicandela Rating: 50mcd
  • Voltage-Forward: 2.1V
  • Current-Test: 20mA
  • Wavelength-Dominant: 570nm
  • Wavelength-Peak: 574nm
  • Package: 1206 (3216 Metric)
  • Dimension: 3.20mm L x 1.60mm W
  • Lens Style/Size: Rectangle with Flat Top, 2.00mm x 1.60mm
  • Lens Color: Colorless with Clear Transparency
  • RoHS Compliant: Yes
  • ECCN: EAR99
