Same model may have multiple batches, images only for reference.

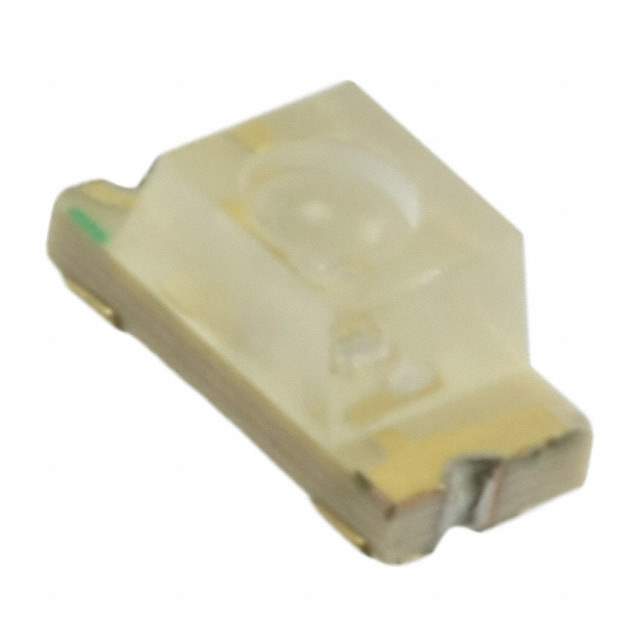

APL3015QBC/D-F01 Real Image
Same model may have multiple batches, images only for reference.

APL3015QBC/D-F01

Part No APL3015QBC/D-F01
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED BLUE CLEAR CHIP SMD / Blue 465nm LED Indication - Discrete 3.3V 2-SMD, No Lead
Datasheet
APL3015QBC/D-F01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Blue
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 200mcd
Lens Style Round with Flat Top
Lens Size 0.18mm Dia
Voltage - Forward (Vf) (Typ) 3.3V
Current - Test 20mA
Viewing Angle 70°
Mounting SMD (SMT)
Wavelength - Dominant 465nm
Wavelength - Peak 460nm
Package / Case 2-SMD, No Lead
Supplier Device Package Chip LED
Dimension 3.00mm L x 1.50mm W
Height (Max) 1.40mm
Base Product Number APL3015
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1502-6,APL3015QBCDF01,754-1502-2,754-1502-1
Standard Package 2,000
Win Source Part Number 969688-APL3015QBC/D-F01
Ultra Librarian 3D Model Ultra Librarian APL3015QBC/D-F01 CAD Model

Description

The Kingbright APL3015QBC/D-F01 is a blue LED indication-discrete component.

  • Win Source Part Number: 969688-APL3015QBC/D-F01
  • Millicandela Rating: 200mcd
  • Voltage-Forward (Vf) (Typ): 3.3V
  • Current-Test: 20mA
  • Viewing Angle: 70 degrees
  • Lens Color: Colorless with clear lens transparency
  • Wavelength-Dominant: 465nm
  • Wavelength-Peak: 460nm
  • Height (Max): 1.40mm
  • Package/Case: 2-SMD, No Lead
  • Supplier Device Package: Chip LED
  • Dimension: 3.00mm L x 1.50mm W
  • Lens Style: Round with a flat top
  • Lens Size: 0.18mm Dia.
  • MSL Level: 3 (168 Hours)
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.41.0000
  • Other Names: 754-1502-6, APL3015QBCDF01, 754-1502-2, and 754-1502-1
  • Base Product Number: APL3015
