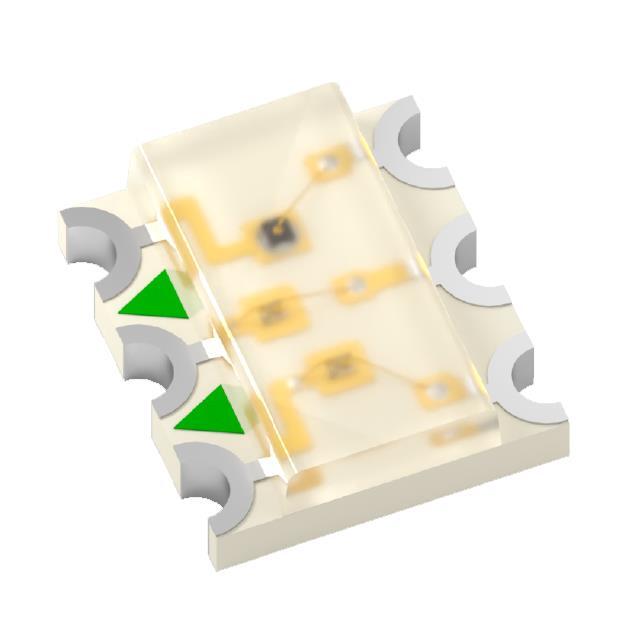

APF3236SEEZGQBDC Kingbright – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

APF3236SEEZGQBDC

Part No APF3236SEEZGQBDC
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED RGB CLEAR SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category OptoelectronicsLED Indication - Discrete
Mfr Kingbright
Part Status Active
Color Red, Green, Blue (RGB)
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 140mcd Red, 330mcd Green, 70mcd Blue
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 3.60mm
Voltage - Forward (Vf) (Typ) 2V Red, 3.3V Green, 3.3V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 120°
Mounting Type Surface Mount
Wavelength - Dominant 621nm Red, 525nm Green, 465nm Blue
Wavelength - Peak 630nm Red, 515nm Green, 460nm Blue
Package / Case 6-SMD, No Lead
Supplier Device Package SMD
Size / Dimension 3.60mm L x 3.20mm W
Height (Max) 1.10mm
Base Product Number APF3236
Ultra Librarian 3D Model Ultra Librarian APF3236SEEZGQBDC CAD Model
