Same model may have multiple batches, images only for reference.

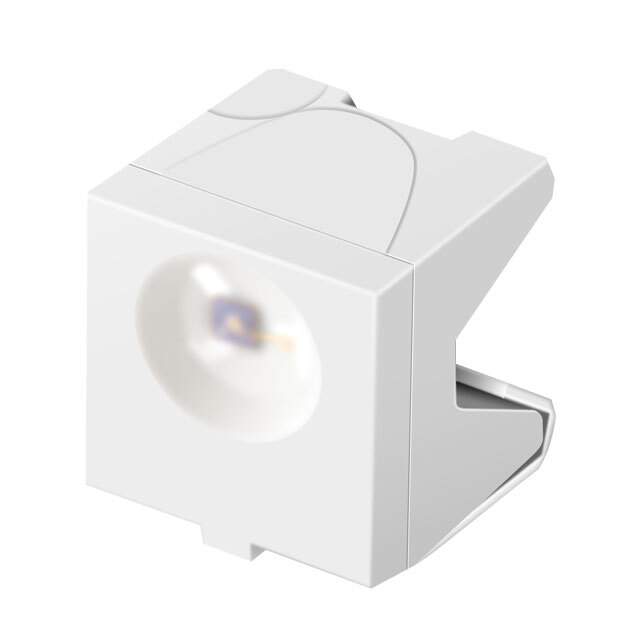

AA4040P3C-P22 Real Image
Same model may have multiple batches, images only for reference.

AA4040P3C-P22

Part No AA4040P3C-P22
Manufacturer Kingbright
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 940NM SIDE VIEW SMD  /  Phototransistors 940nm Side View 2-SMD, Boomerang
Datasheet
AA4040P3C-P22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr Kingbright
Package Tape & Reel
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Dark (Id) (Max) 100 nA
Wavelength 940nm
Viewing Angle 120°
Power - Max 100 mW
Mounting Type Surface Mount, Right Angle
Orientation Side View
Temperature Range - Operating -40°C ~ 85°C
Package / Case 2-SMD, Boomerang
Base Product Number AA4040
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Other Names 754-2205-2,754-2205-1,754-2205-6
Standard Package 500
Win Source Part Number 1042375-AA4040P3C-P22
Ultra Librarian 3D Model Ultra Librarian AA4040P3C-P22 CAD Model

Description

The AA4040P3C-P22 is a phototransistor from Kingbright.

  • Maximum Power: 100 mW
  • Voltage Rating: 30V
  • Viewing Angle: 120 degrees
  • Wavelength: 940nm
  • Mounting Type: surface mount, right angle
  • RoHS Compliant: yes
  • Temperature Range: -40 to 85 degrees Celsius
