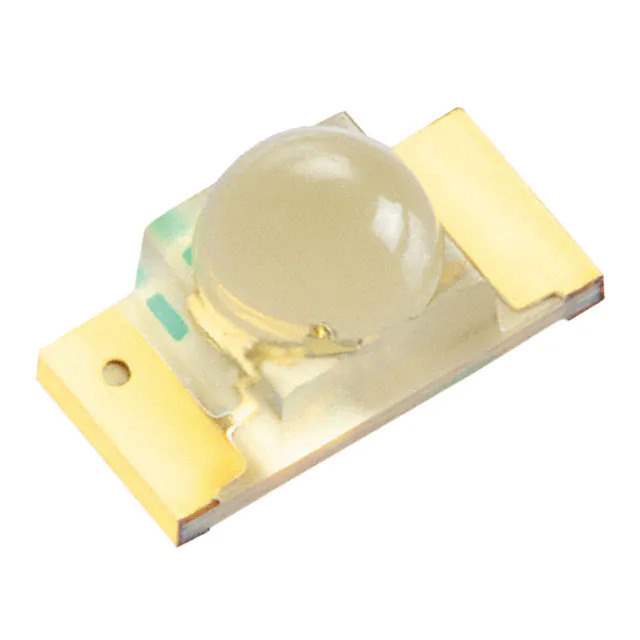

Same model may have multiple batches, images only for reference.

APTD3216SRCPRV

Name: APTD3216SRCPRV
Brand: Kingbright Corporation
SKU: 564236
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	APTD3216SRCPRV
Manufacturer	Kingbright Corporation
Catalog	LED Indication - Discrete
Description	LED RED CLEAR 2SMD
Datasheet	APTD3216SRCPRV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics - LED Indication - Discrete
Mfr	Kingbright Corporation
Package	Tape & Reel
Product Status	Obsolete
Color	Red
Configuration	Standard
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	150mcd
Lens Style	Round with Domed Top
Lens Size	1.60mm Dia
Voltage - Forward (Vf) (Typ)	1.85V
Current - Test	20mA
Viewing Angle	35°
Mounting Type	Surface Mount
Wavelength - Dominant	640nm
Wavelength - Peak	655nm
Package / Case	1206 (3216 Metric)
Supplier Device Package	2-SMD
Size / Dimension	3.20mm L x 1.60mm W
Height (Max)	1.90mm
Base Product Number	APTD3216
Standard Package	2,000 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	564236-APTD3216SRCPRV
Ultra Librarian 3D Model	Ultra Librarian APTD3216SRCPRV CAD Model

Description

The APTD3216SRCPRV is a surface mount LED indicator that emits red light.

Mounting Style: Surface Mount
Size: 3.20mm x 1.60mm
Viewing Angle: 35 degrees
Millicandela Rating: 150mcd
Forward Voltage: 1.85V
Forward Current: 20mA
Dominant Wavelength: 640nm
Applications: Status indicators, displays, and backlighting
Package: Tape and Reel
Standard Package Quantity: 2,000 pcs
Lens: Clear
Top Design: Round, Domed
