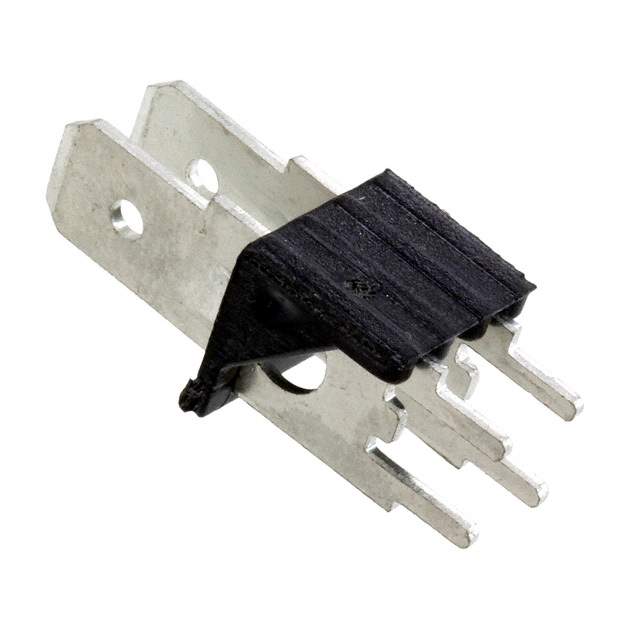

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr Keystone Electronics
Package Bulk
Product Status Active
Terminal Type Header
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.307" (7.80mm)
Length - Overall 0.984" (25.00mm)
Termination Solder
Insulation Non-Mating End Insulated
Mounting Type Through Hole
Features 2 Tabs
Color Black
Contact Material Brass
Contact Finish Tin
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 858211-7812
Ultra Librarian 3D Model Ultra Librarian 7812 CAD Model

Description

The 858211-7812 is a male quick connect terminal by Keystone Electronics.

  • Color: Black
  • Tabs: 2
  • Termination: Solder
  • Contact Finish: Tin
  • Insulation: Non-Mating End
  • Overall Length: 0.984" (25.00mm)
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.307" (7.80mm)
  • Mounting: Through-Hole
