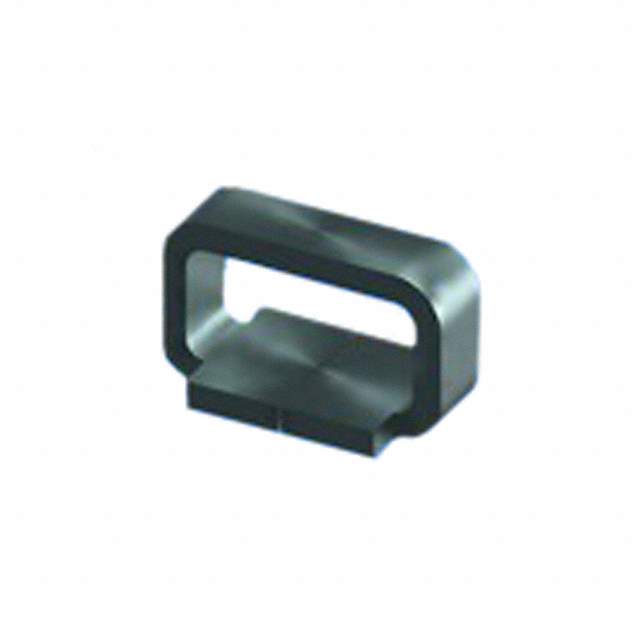

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Test and Measurement - Test Points
Mfr Keystone Electronics
Package Tape & Reel
Product Status Active
Type PC Test Point, Miniature
Mounting Type Surface Mount
Size / Dimension 0.150" L x 0.080" W (3.81mm x 2.03mm)
Height 0.090" (2.29mm)
Plating Silver
Material - Insulation No Insulation
Material - Body Phosphor Bronze
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856292-5029
Ultra Librarian 3D Model Ultra Librarian 5029 CAD Model

Description

The 856292-5029 is a PC test point miniature by Keystone Electronics.

  • Type: Surface mount test point
  • Size: 0.150" L x 0.080" W (3.81mm x 2.03mm)
  • Height: 0.090" (2.29mm)
  • Material: Phosphor bronze
  • Plating: Silver
  • Mounting Type: Surface mount
  • Package: Tape & reel
  • Applications: Test and measurement
