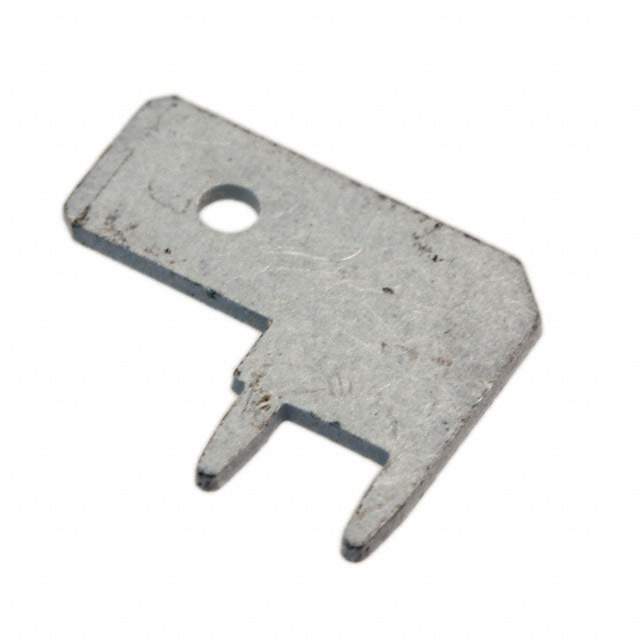

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr Keystone Electronics
Package Bulk
Product Status Active
Terminal Type Standard
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.312" (7.92mm)
Length - Overall 0.590" (14.99mm)
Termination Solder
Insulation Non-Insulated
Mounting Type Through Hole, Right Angle
Features UL Approved
Contact Material Brass
Contact Finish Tin
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 856187-4966
Ultra Librarian 3D Model Ultra Librarian 4966 CAD Model

Description

The 856187-4966 is a quick connect terminal designed for electrical connections.

  • Gender: Male
  • Terminal Type: Standard
  • Material: Brass
  • Contact Finish: Tin
  • Overall Length: 0.590 inches (14.99mm)
  • Tab Width: 0.250-inch (6.35mm)
  • Tab Thickness: 0.032-inch (0.81mm)
  • Package: Bulk package of 10 pieces
  • Approvals: UL
  • Insulation: Non-insulated
  • Manufacturer: Keystone Electronics
