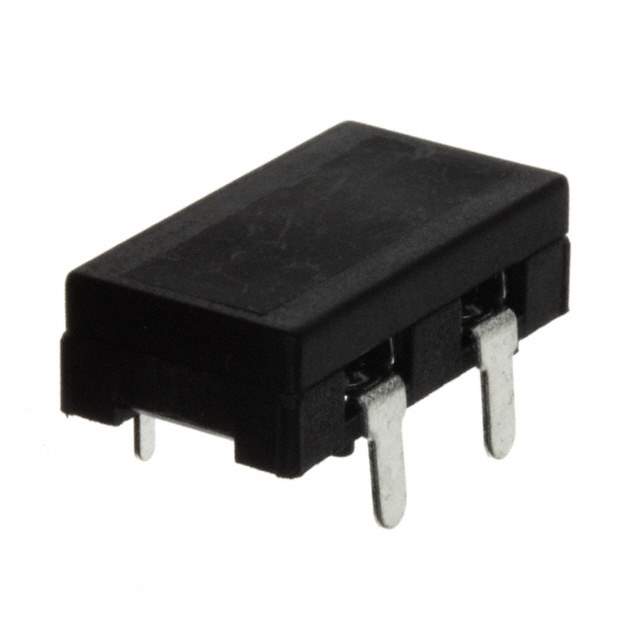

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Mfr Keystone Electronics
Series -
Package Bulk
Mounting Type Through Hole
Fuse Size 0.75" L x 0.2" W (19.1mm x 5.1mm)
Current Rating (Amps) 20 A
For Use With/Related Products ATC, ATO
Fuse Type Blade
Fuseholder Type Block
Number of Circuits 1
Voltage 500V
Orientation Horizontal
Termination Style PC Pin
Contact Material Brass
Contact Finish Nickel
Approval Agency UL
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Standard Package 100 pcs
Win Source Part Number 1380775-3550-2
Ultra Librarian 3D Model Ultra Librarian 3550-2 CAD Model

Description

The 1380775-3550-2 is a circuit protection fuseholder manufactured by Keystone Electronics.

  • Type: Block Type Fuseholder
  • Fuse Type: ATC, ATO
  • Voltage Rating: 500V
  • Current Rating: 20A
  • Termination Style: PC Pin
  • Contact Finish: Nickel
  • Package: Bulk
  • Size: 0.75" L x 0.2" W (19.1mm x 5.1mm)
  • Approval: UL
  • Mounting: Through Hole
