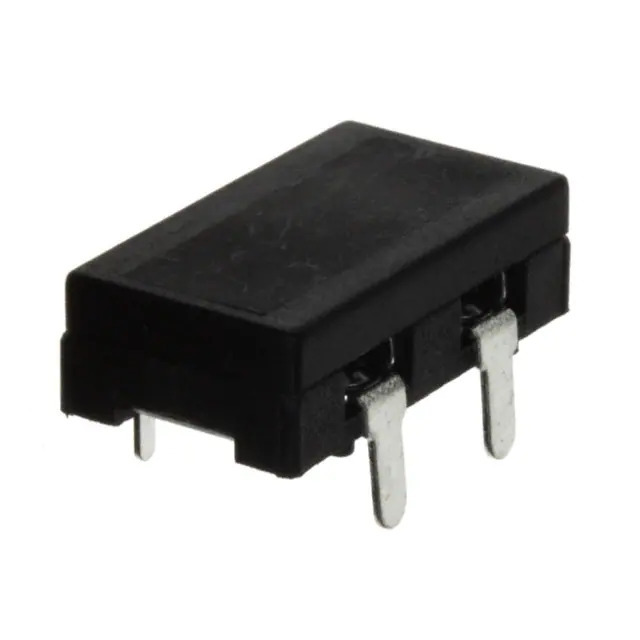

3549-2 Keystone Electronics
Same model may have multiple batches, images only for reference.

3549-2

Part No 3549-2
Manufacturer Keystone Electronics
Catalog Fuseholders
Description FUSE CLIP BLADE 500V 20A PCB / Fuse Block 20 A 500V 1 Circuit Blade Through Hole
Datasheet
3549-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Keystone Electronics
Series -
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Size 0.433" L x 0.152" W (11.00mm x 3.85mm)
Current Rating (Amps) 20 A
For Use With/Related Products Miniature (ATM)
Fuse Type Blade
Fuseholder Type Block
Number of Circuits 1
Voltage 500V
Orientation Horizontal
Termination Style PC Pin
Contact Material Brass
Contact Finish Nickel
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361494-3549-2
Ultra Librarian 3D Model Ultra Librarian 3549-2 CAD Model

Description

The 3549-2 is a fuseholder for miniature (ATM) blade fuses manufactured by Keystone Electronics.

  • Product Category: Circuit Protection - Fuseholders
  • Product Status: Active
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Mounting Type: Through Hole
  • Termination: PC Pin
  • Orientation: Horizontal
  • Fuse Size: 20A Blade
  • Voltage Rating: 500V
