Same model may have multiple batches, images only for reference.

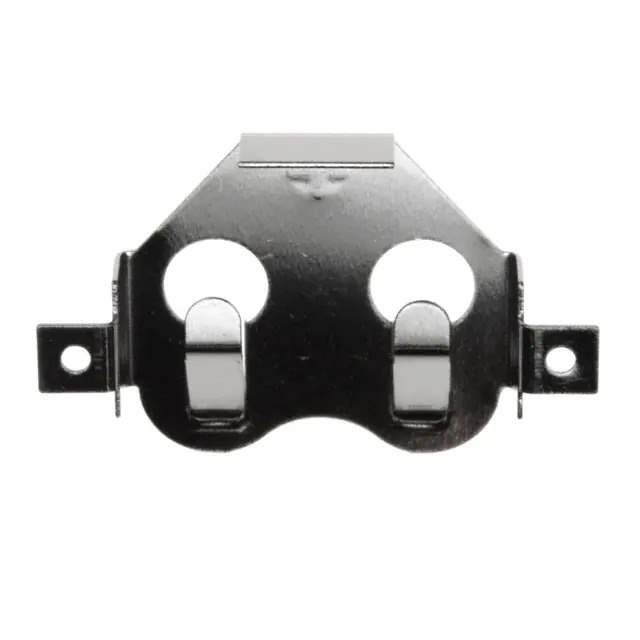

3012 Real Image
Same model may have multiple batches, images only for reference.

3012

Part No 3012
Manufacturer Keystone Electronics
Catalog Battery Holders, Clips, Contacts
Description BATT RETAINER COIN 16MM 1CEL SMD
Datasheet
3012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Battery Products - Battery Holders, Clips, Contacts
Mfr Keystone Electronics
Package Bulk
Product Status Active
Battery Type, Function Coin Cell, Retainer
Style Retainer
Battery Cell Size Coin, 16.0mm
Number of Cells 1
Battery Series 1612, 1616, 1620, 1632
Mounting Type PCB, Surface Mount
Termination Style SMD (SMT) Tab
Height Above Board 0.156" (3.96mm)
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 545256-3012
Ultra Librarian 3D Model Ultra Librarian 3012 CAD Model

Description

The Keystone Electronics 545256-3012 is a battery holder, clip, and contact product in the category of battery products.

  • Termination Style: Surface mount with SMD (SMT) tab
  • Height Above Board: 0.156 inches (3.96mm)
  • Retainer Style: Holder
  • Battery Size: 16.0mm (Coin Cell)
  • Supports: 1612, 1616, 1620, 1632 Series Coin Cell Batteries
  • Mounting Type: PCB, Surface Mount
  • ECCN: EAR99 (No export license required)
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected (Compliant)
  • HTSUS Code: 8536.69.4040
  • Market Status: Active
