Part No 1024
Manufacturer Keystone Electronics
Catalog Battery Holders, Clips, Contacts

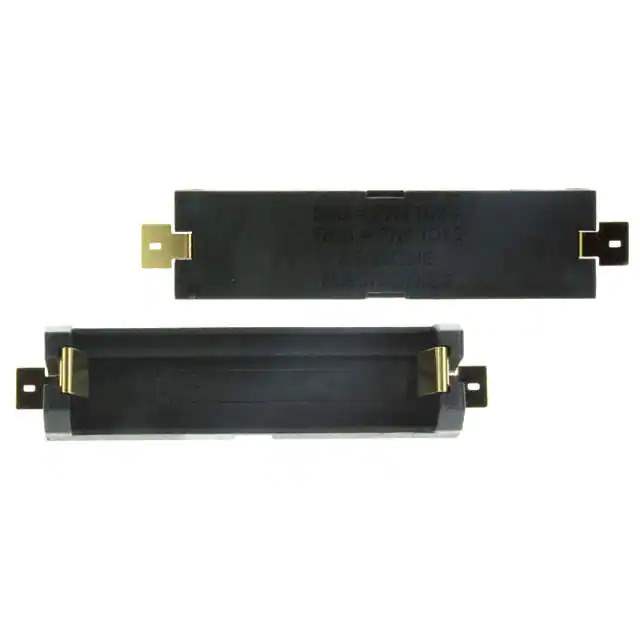

Description BATT HOLDER AA 1 CELL SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Battery Products - Battery Holders, Clips, Contacts
Mfr Keystone Electronics
Package Bulk
Product Status Active
Battery Type, Function Cylindrical, Holder
Style Holder (Open)
Battery Cell Size AA
Number of Cells 1
Mounting Type PCB, Surface Mount
Termination Style SMD (SMT) Tab
Height Above Board 0.585" (14.86mm)
Temperature Range - Operating -50°C ~ 145°C
Standard Package 200 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 538297-1024
Ultra Librarian 3D Model Ultra Librarian 1024 CAD Model

Description

The 538297-1024 is a battery holder designed for holding a single AA battery.

  • Type: Surface Mount (SMD) Tab
  • Height Above Board: 0.585 inches (14.86mm)
  • Manufacturer: Keystone Electronics
  • Temperature Range: -50°C to 145°C
  • Standard Package: 200 Pieces
  • Status: Active Product
