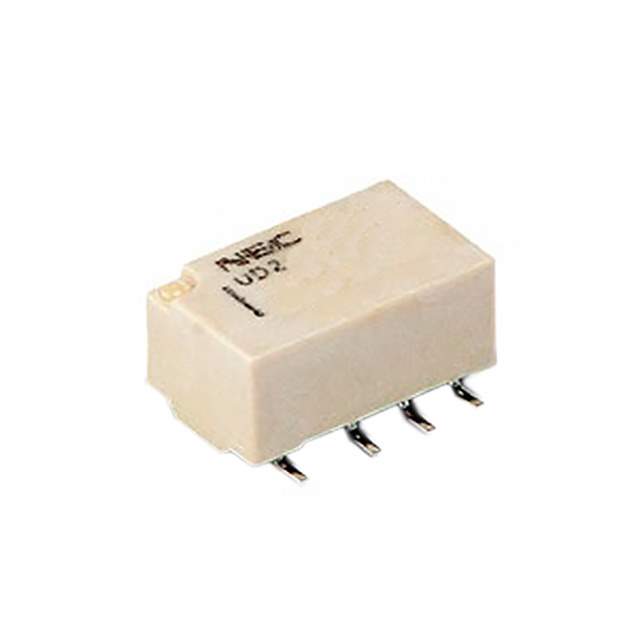

UD2-4.5NU

Part No UD2-4.5NU
Manufacturer Kemet
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 1A 4.5V
Datasheet
UD2-4.5NU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Kemet
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 31mA
Coil Voltage 4.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 3.38 VDC
Turn Off Voltage (Min) 0.45 VDC
Operate Time 2ms
Release Time 1ms
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 145 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 125073-UD2-4.5NU
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UD2-4.5NU CAD Model

Description

The Kemet is a Relay product that comes with a packaging of Tube/Rail.

  • Packaging: Tube/Rail
  • Termination Style: Gull Wing
  • Contact Form: DPDT (2 Form C)
  • Mounting: SMD (SMT) mounted
  • Coil Resistance: 145 Ohms
  • Coil Current: 31mA
  • Operate Time: 2ms
  • Relay Type: General-purpose
  • Coil Type: Non-latching
  • Coil Voltage: 4.5VDC
  • Contact Rating (current): 1A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Turn on Voltage (Max): 3.38 VDC
  • Turn-off Voltage (Min): 0.45 VDC
  • Release Time: 1ms
  • Coil Power: 140 mW
  • Popularity: Medium popularity in the market.
  • Supply and demand status: Balanced.
