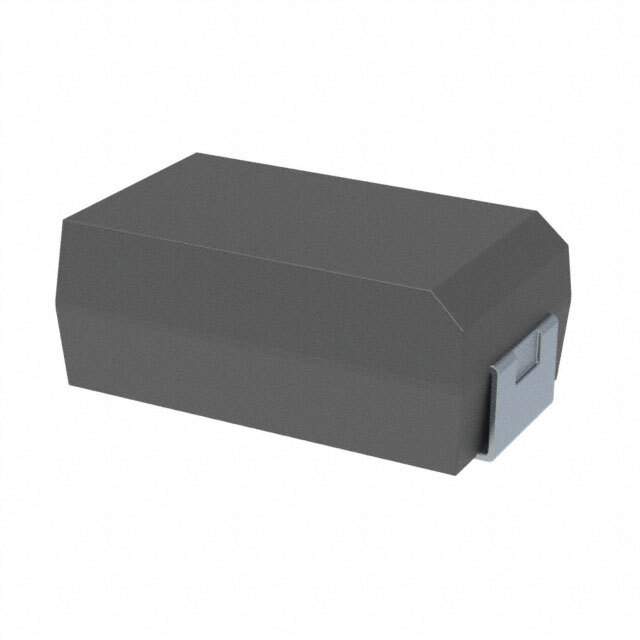

T520D157M006ASE055 Real Image
Same model may have multiple batches, images only for reference.

T520D157M006ASE055

Part No T520D157M006ASE055
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 150UF 6.3V 2917 / Cap Tant Polymer 150uF 6.3VDC D CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343-31 0.055 Ohm 105°C T/R
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series KO-CAP T520
Packaging Reel package
Part Status Obsolete(EOL)
Capacitance 150μF
Tolerance ±20%
Voltage Rating DC 6.3V
Type Molded
ESR (Equivalent Series Resistance) 55 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General
Win Source Part Number 796136-T520D157M006ASE055
Popularity Medium
Supply and Demand Status Limited
Family Name T520
Introduction Date September 26, 2011
ECCN EAR99
Country of Origin China, Mexico, Portugal, United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian T520D157M006ASE055 CAD Model

Description

The Kemet T520D157M006ASE055 is a molded capacitor with a capacitance of 150μF and a tolerance of ±20%.

  • ESR: 55 mOhm
  • Lifetime: 2000 hours @ 105°C
  • Mounting Type: Surface-Mount Device
  • Package Size: 2917 (7343 Metric)
  • Voltage Rating: 6.3V DC
  • Supply and Demand Status: Limited
