Same model may have multiple batches, images only for reference.

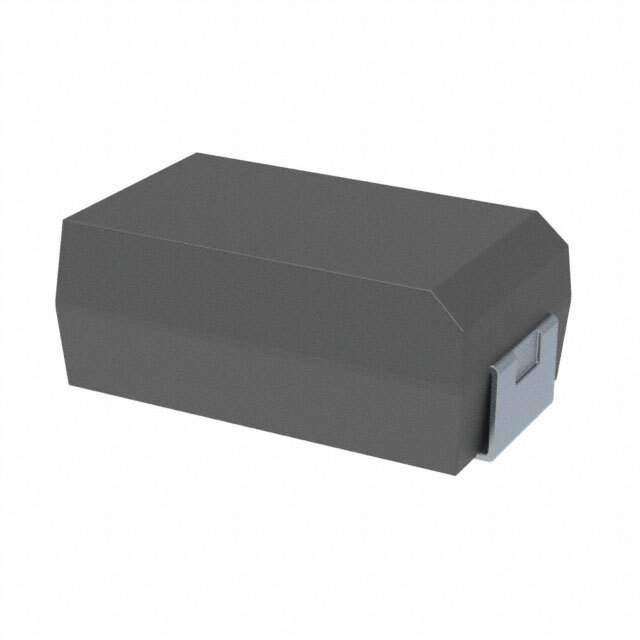

T520D156M025ATE080 Real Image
Same model may have multiple batches, images only for reference.

T520D156M025ATE080

Part No T520D156M025ATE080
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 15UF 25V 2917
Datasheet
T520D156M025ATE080 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series KO-CAP T520
Packaging Reel - TR
Capacitance 15μF
Tolerance ±20%
Voltage Rating DC 25V
Type Molded
ESR (Equivalent Series Resistance) 80 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 2917 (7343 Metric)
Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General
Manufacturer Homepage www.kemet.com
Win Source Part Number 727426-T520D156M025ATE080
Popularity Medium
Supply and Demand Status Limited
Family Name T520
Introduction Date September 26, 2011
ECCN EAR99
Country of Origin China, Mexico, United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian T520D156M025ATE080 CAD Model

Description

It has a limited supply and demand status, and is manufactured by Kemet.

  • Win Source Part Number: 727426-T520D156M025ATE080
  • Manufacturer Homepage: www.kemet.com
  • Series: KO-CAP T520
  • Capacitance: 15μF
  • Tolerance: ±20%
  • ESR: 80 mOhm
  • Operating Temperature Range: -55°C to 105°C
  • Lifetime: 2000 Hrs @ 105°C
  • Package: 2917 (7343 Metric)
  • Mounting: SMD
  • Voltage Rating DC: 25V
  • Halogen-Free: Yes
  • Estimated EOL Date: 2026
  • Manufacturing Locations: China, Mexico, and the United States of America
