Same model may have multiple batches, images only for reference.

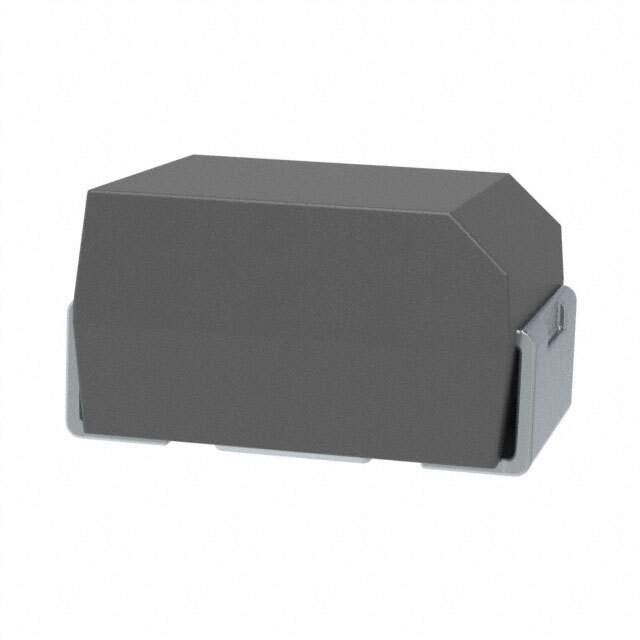

T520B337M2R5ATE045 Real Image
Same model may have multiple batches, images only for reference.

T520B337M2R5ATE045

Part No T520B337M2R5ATE045
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description Polymer Tantalum Capacitors 330UF 2.5V 3528
Datasheet
T520B337M2R5ATE045 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Reel - TR
Status Active
Capacitance 330μF
Tolerance ±20%
Voltage Rating 2.5V
Type Molded
ESR 45 mOhm
Temperature Range - Operating -55°C to 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD (SMT)
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) 0.083" (2.10mm)
Manufacturer Size Code B
Features General Purpose
Win Source Part Number 047642-T520B337M2R5ATE045
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian T520B337M2R5ATE045 CAD Model

Description

The Kemet electronic component is a molded type capacitor with a capacitance of 330μF and a tolerance of ±20%.

  • Capacitance: 330μF
  • Tolerance: ±20%
  • Voltage Rating: 2.5V
  • ESR: 45 mOhm
  • Use: General-Purpose
  • Lifetime: 2000 Hrs @ 105°C
  • Manufacturer Size Code: B
  • Supply and Demand Status: Balanced
  • Mounting Technology: SMD (SMT)
  • Dimension: 0.138" L x 0.110" W (3.50mm x 2.80mm)
