Same model may have multiple batches, images only for reference.

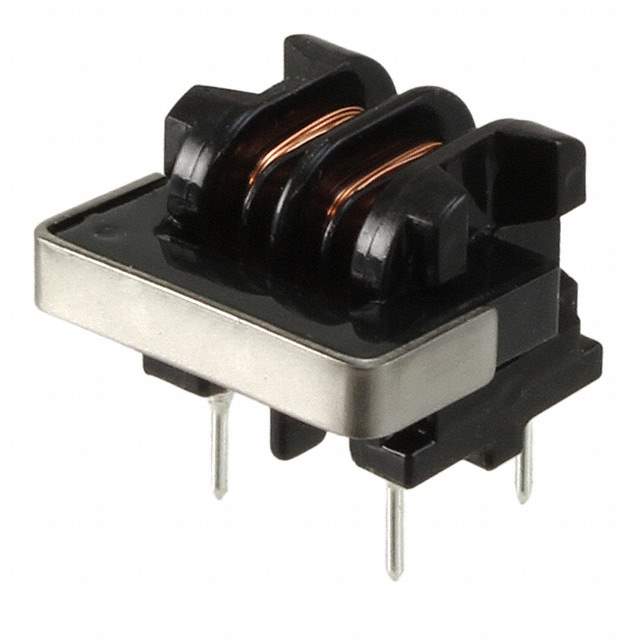

SU9HF-03060 Real Image
Same model may have multiple batches, images only for reference.

SU9HF-03060

Part No SU9HF-03060
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 6 mH @ 1 kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 2Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.472" (12.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9HF
Other Names 399-10713,UALSU9HF030600
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276481-SU9HF-03060
Ultra Librarian 3D Model Ultra Librarian SU9HF-03060 CAD Model

Description

The KEMET electronic component is a part of the Filters>Common Mode Chokes category.

  • Series: SU series
  • Win Source Part Number: 1276481-SU9HF-03060
  • Package: Bulk
  • Voltage Rating: 250V
  • Maximum Current Rating: 300mA
  • Standard Package: 1,000
  • Filter Type: Power line filter type
  • Height (max): 0.472" (12.00mm)
  • Lines: 2
  • Inductance: 6 mH @ 1 kHz
  • DC Resistance (DCR) (max): 2Ohm
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range: -25°C ~ 120°C
  • Dimension: 0.669" L x 0.610" W (17.00mm x 15.50mm)
  • MSL Level: 1 (Unlimited)
  • REACH: Not affected
  • HTSUS: 8504.31.4065
  • Mfr: KEMET
