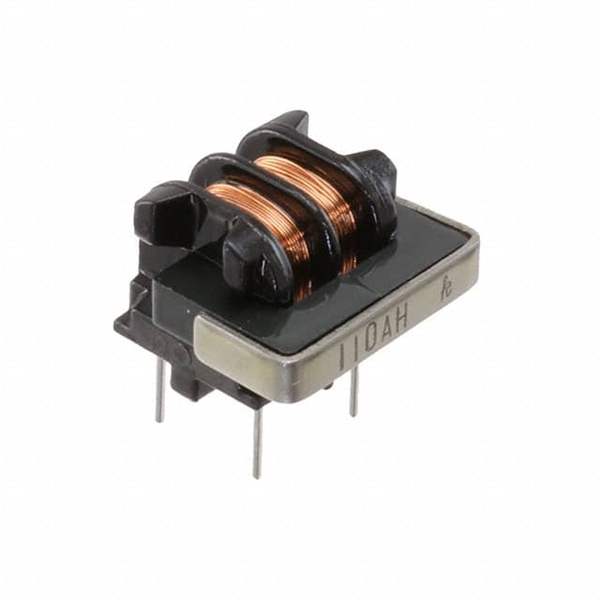

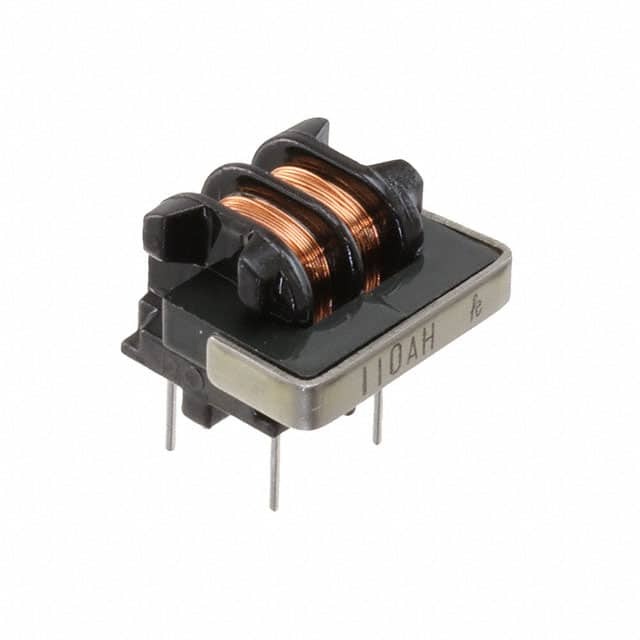

ST-110AH Kemet
Same model may have multiple batches, images only for reference.

ST-110AH

Part No ST-110AH
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 300MA 2LN 27K OHM TH
Datasheet
ST-110AH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr KEMET
Series ST
Package Tray
Product Status Active
Number of Lines 2
Impedance @ Frequency 27 kOhms @ 500 kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 3Ohm
Voltage Rating - DC 50V
Temperature Range - Operating -20°C ~ 75°C
Mounting Type Through Hole
Size / Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.472" (12.00mm)
Package / Case Horizontal, 8 PC Pin
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277110-ST-110AH
Ultra Librarian 3D Model Ultra Librarian ST-110AH CAD Model

Description

The ST-110AH is a common mode choke from KEMET.

  • Series: ST
  • Application: Filtering
  • Size: 0.669" L x 0.610" W (17.00mm x 15.50mm)
  • Current Rating: 300mA (max)
  • Package: Horizontal, 8 PC pin
  • Mounting: Through-Hole
  • Impedance: 27 kOhms @ 500 kHz
  • Temperature Range: -20°C to 75°C
  • Status: Active
