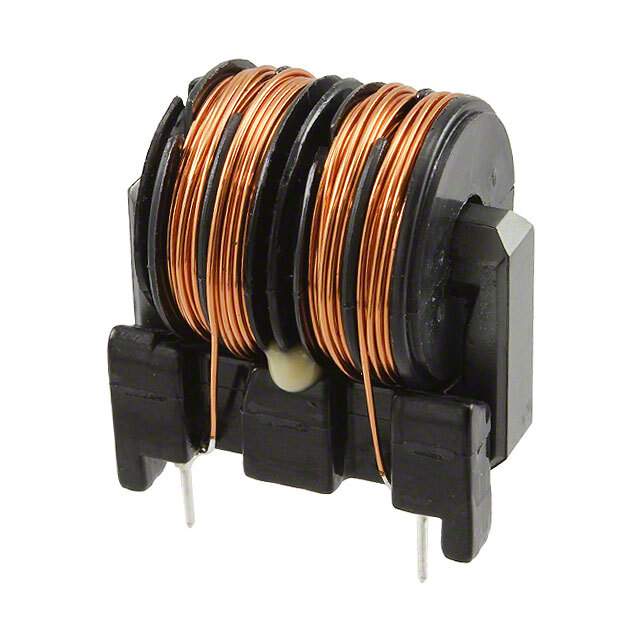

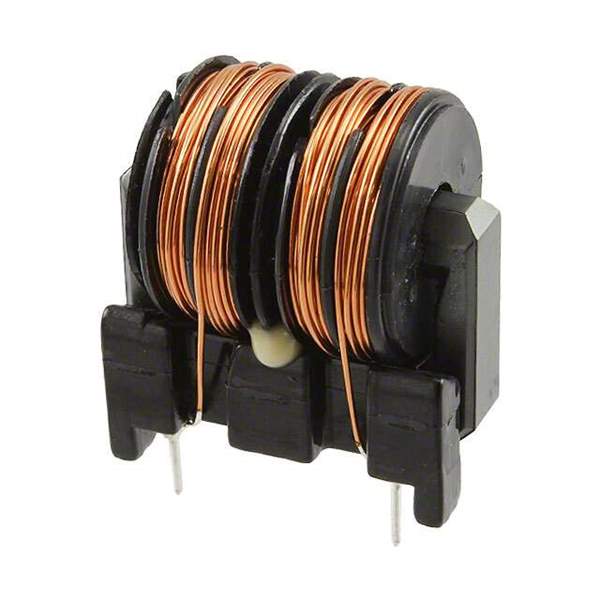

SS30V-R180190 Real Image
Same model may have multiple batches, images only for reference.

SS30V-R180190

Part No SS30V-R180190
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 19 mH @ 1 kHz
Current Rating (Max) 1.8A
DC Resistance (DCR) (Max) 230mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.220" L x 0.886" W (31.00mm x 22.50mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS30V
Other Names 399-10599,UAL30VR1801900
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276729-SS30V-R180190
Ultra Librarian 3D Model Ultra Librarian SS30V-R180190 CAD Model

Description

The KEMET common mode choke with Win Source Part Number 1276729-SS30V-R180190 is a power line filter type component.

  • Voltage Rating: 250V AC
  • Current Rating: 1.8A
  • Height: 1.339 inches
  • Number of Lines: 2
  • DC Resistance (DCR): 230mOhm
  • Mounting Type: Through hole
  • Temperature Range: -25°C to 120°C
  • Series Name: SS
  • Standard Package: 200
