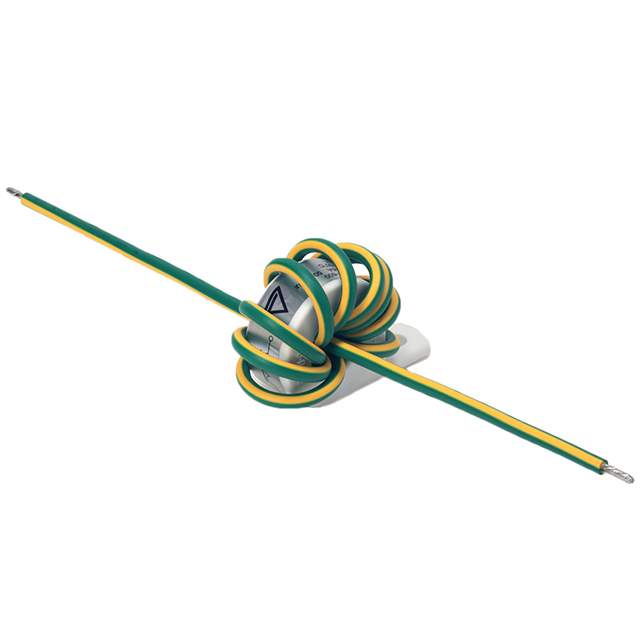

Same model may have multiple batches, images only for reference.

SNG-25A-600

Name: SNG-25A-600
Brand: Kemet
SKU: 1272730
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SNG-25A-600
Manufacturer	Kemet
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	SNG
Type	Drum Core, Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	600 µH
Tolerance	-30%, +50%
Shielding	Unshielded
DC Resistance (DCR)	20mOhm Max
Temperature Range - Operating	-25°C ~ 105°C
Inductance Frequency - Test	160 kHz
Mounting Type	User Defined
Package / Case	Vertical, 2 Wire Leads
Dimension	1.535" Dia (39.00mm)
Height - Seated (Max)	0.945" (24.00mm)
Base Product Number	SNG-25
Other Names	UALSNG25A60000,399-SNG-25A-600
Standard Package	150
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1272730-SNG-25A-600
Ultra Librarian 3D Model	Ultra Librarian SNG-25A-600 CAD Model

Alternative Products

Description

The Kemet 1272730-SNG-25A-600 is a fixed inductor with a drum core and wirewound type. It has an inductance of 600 µH, a tolerance of -30% to +50%, and a DC resistance of 20mOhm max. The inductor is unshielded and made of manganese zinc ferrite (MnZn) core material. It is packaged in a vertical, 2 wire leads case and has a maximum operating temperature of 105 °C.
