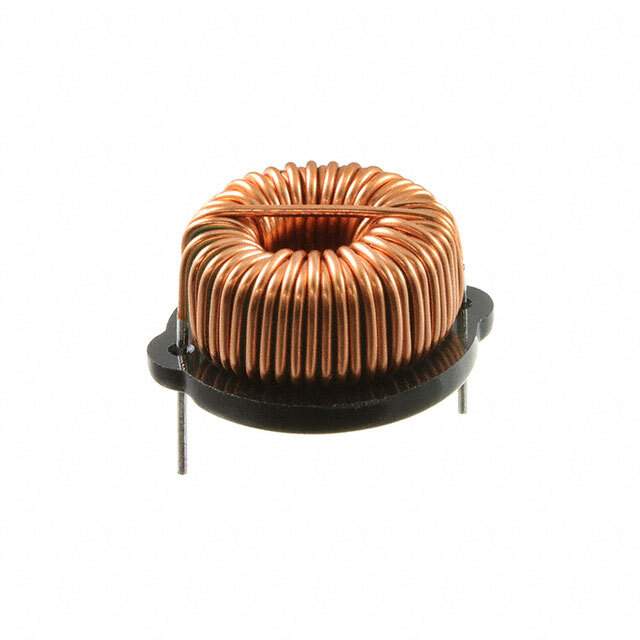

SN8S-50P2 Real Image
Same model may have multiple batches, images only for reference.

SN8S-50P2

Part No SN8S-50P2
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN8S-50P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Filter Type Power Line
Number of Lines 2
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.748" Dia (19.00mm)
Height (Max) 0.413" (10.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SN8S
Other Names UALSN8S50P2000,399-20606
Standard Package 1,600
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276839-SN8S-50P2
Ultra Librarian 3D Model Ultra Librarian SN8S-50P2 CAD Model

Description

The KEMET SN8S-50P2 is a common mode choke filter that is designed for power line filtering applications.

  • Filter Type: Power Line Filter
  • Package: Bulk
  • Mounting: Through-Hole
  • Height: 0.413 inches
  • Diameter: 0.748 inches
