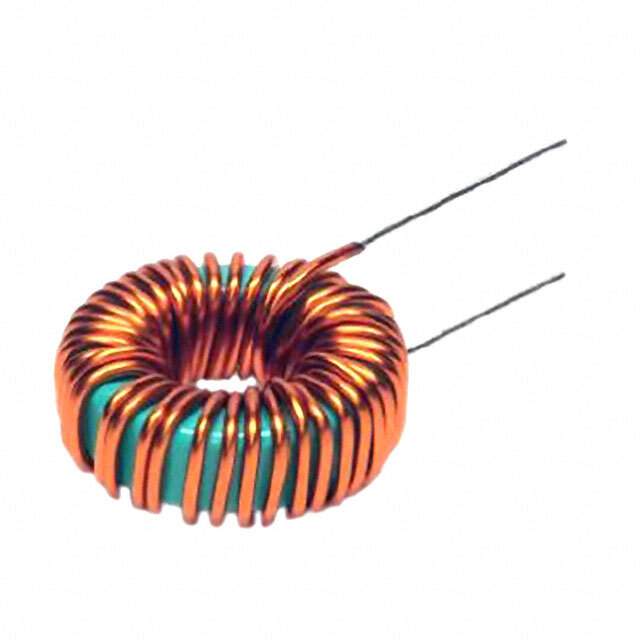

SN8S-500 Real Image
Same model may have multiple batches, images only for reference.

SN8S-500

Part No SN8S-500
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN8S-500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 72 µH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 68mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.630" Dia x 0.354" W (16.00mm x 9.00mm)
Height (Max) 0.689" (17.50mm)
Package / Case Vertical, No Base, 2 PC Pin
Base Product Number SN8S
Other Names 399-20552,UALSN8S5000000
Standard Package 2,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276840-SN8S-500
Ultra Librarian 3D Model Ultra Librarian SN8S-500 CAD Model

Description

The SN series common mode choke from KEMET is a high-quality filter designed for power line applications.

  • Maximum Current Rating: 2A
  • Mounting Type: Through-Hole
  • Package: Vertical, No Base, 2 PC Pin
  • Height: 0.689" (17.50mm)
  • Diameter: 0.630" (16.00mm)
  • Inductance: 72 µH @ 100 kHz
  • DC Resistance (DCR): 68mOhm
  • Operating Temperature Range: -25°C to 105°C
