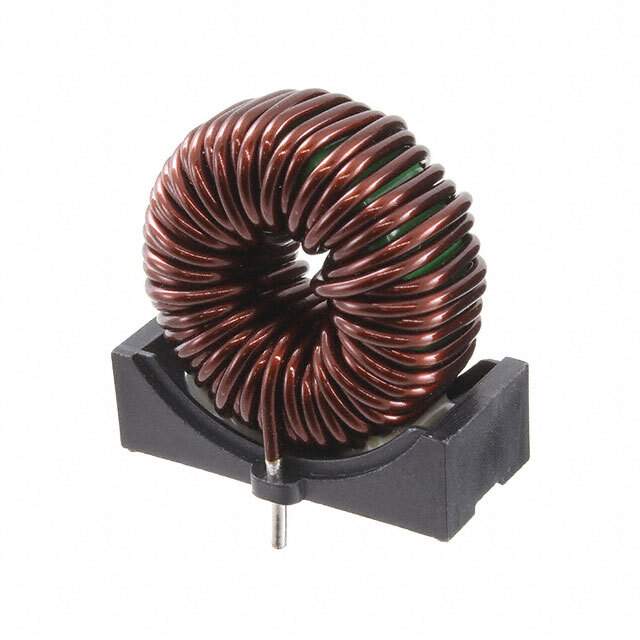

SN16-500JA

Part No SN16-500JA
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN16-500JA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 168 µH @ 100 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 31mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Height (Max) 1.555" (39.50mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SN16
Other Names UALSN16500JA00,399-20593
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276830-SN16-500JA
Ultra Librarian 3D Model Ultra Librarian SN16-500JA CAD Model

Description

The KEMET electronic component with the Win Source Part Number 1276830-SN16-500JA is a common mode choke filter.

  • Series: SN
  • Package: Bulk
  • Maximum Current Rating: 8A
  • Standard Package: 200
  • Filter Type: Power line
  • Height: 1.555" (39.50mm)
  • Lines: Two
  • Inductance: 168 µH @ 100 kHz
  • DC Resistance: 31mOhm
  • Mounting Type: Through-hole
  • Placement: Vertically placed with 2 PC pins
  • Temperature Range: -25°C ~ 105°C
  • REACH: Unaffected
  • HTSUS: 8504.50.8000
