Same model may have multiple batches, images only for reference.

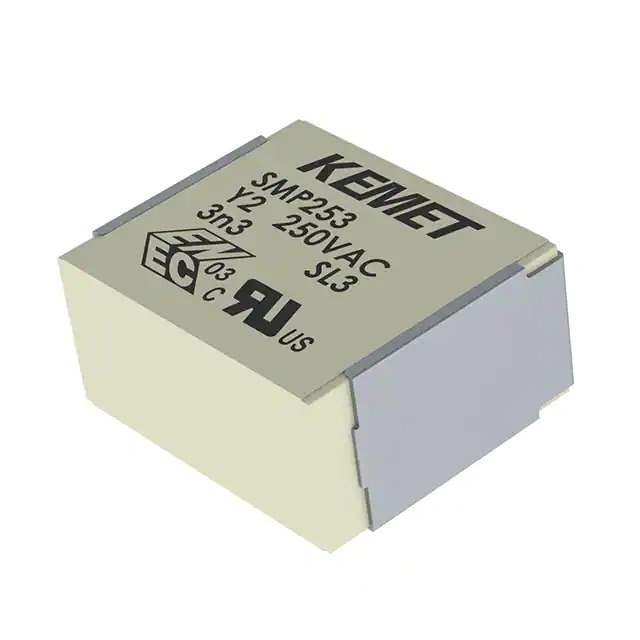

SMP253MA4100MTR24 Real Image
Same model may have multiple batches, images only for reference.

SMP253MA4100MTR24

Part No SMP253MA4100MTR24
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1000PF 20% 1.5KVDC SMD
Datasheet
SMP253MA4100MTR24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series SMP253
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Capacitance 1000 pF
Tolerance ±20%
Voltage Rating - AC 250V
Voltage Rating - DC 1500V (1.5kV)
Dielectric Material Paper, Metallized
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount
Package / Case Nonstandard SMD
Size / Dimension 0.500" L x 0.453" W (12.70mm x 11.50mm)
Height - Seated (Max) 0.264" (6.70mm)
Termination Solder Pads
Applications EMI, RFI Suppression
Ratings Y2
Base Product Number SMP253M
Standard Package 600 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 329558-SMP253MA4100MTR24
Ultra Librarian 3D Model Ultra Librarian SMP253MA4100MTR24 CAD Model

Description

The 329558-SMP253MA4100MTR24 is a surface mount film capacitor from the SMP253 series.

  • Series: SMP253
  • Application: EMI and RFI suppression applications
  • Capacitance: 1000 pF
  • Voltage Rating: 250V AC / 1500V DC
  • Tolerance: ±20%
  • Rating: Y2
  • Package Size: 0.500" L x 0.453" W (12.70mm x 11.50mm)
  • Packaging: Tape & reel or cut tape
  • Height When Seated: 0.264" (6.70mm)
  • Manufacturer: KEMET
  • Standard Package: 600 pcs
  • Market Status: Active
  • REACH Regulations: Unaffected
