Same model may have multiple batches, images only for reference.

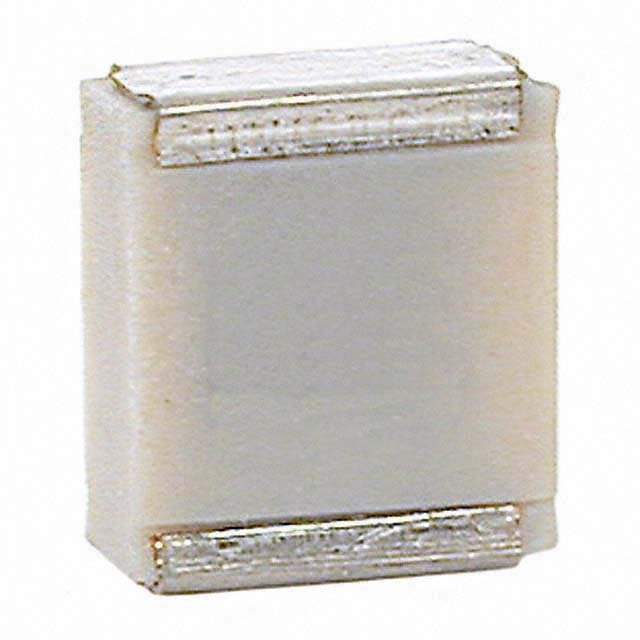

SMC10.2224J100A31TR16 Real Image
Same model may have multiple batches, images only for reference.

SMC10.2224J100A31TR16

Part No SMC10.2224J100A31TR16
Manufacturer Kemet
Catalog Film Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series SMC
Package Tape & Reel
Capacitance 0.22 µF
Tolerance ±5%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.402" L x 0.358" W (10.20mm x 9.10mm)
Height - Seated (Max) 0.224" (5.70mm)
Termination Solder Pads
Applications General Purpose
Features High Temperature
Base Product Number SMC10.2
Other Names 399-12914-6,F125WP224J100V,399-12914-1,399-12914-2
Standard Package 800
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1302415-SMC10.2224J100A31TR16
Ultra Librarian 3D Model Ultra Librarian SMC10.2224J100A31TR16 CAD Model

Description

The KEMET SMC10.2224J100A31TR16 is a high-temperature film capacitor with a capacitance of 0.22μF and a voltage rating of 63VAC/100VDC.

  • Capacitance: 0.22μF
  • Voltage Rating: 63VAC/100VDC
  • Mounting: Surface mount
  • Tolerance: ±5%
  • Packaging: Tape and reel
  • Height: 5.70mm
  • Dimension: 0.402 x 0.358 inches
  • Dielectric Material: polyphenylene sulfide (PPS)
  • Detail: metallized
  • Temperature Range: -55°C to 125°C

The capacitor is suitable for use in applications that require a film capacitor.
