Same model may have multiple batches, images only for reference.

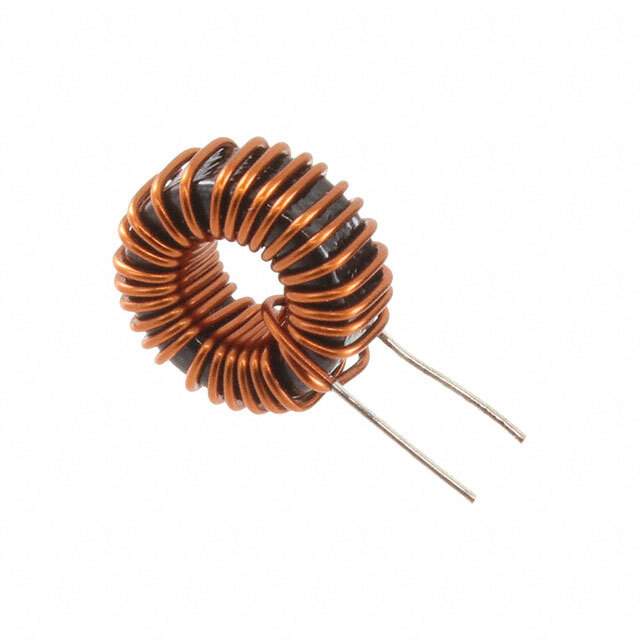

SHBC20-1R7A0097V Real Image
Same model may have multiple batches, images only for reference.

SHBC20-1R7A0097V

Part No SHBC20-1R7A0097V
Manufacturer Kemet
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr KEMET
Series SHBC
Package Bulk
Type Toroidal
Material - Core Alloy Powder
Inductance 97 µH
Tolerance ±20%
Current Rating (Amps) 12 A
Shielding Unshielded
DC Resistance (DCR) 16mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Supplier Device Package Radial
Dimension 1.622" Dia (41.20mm)
Height - Seated (Max) 1.622" (41.20mm)
Base Product Number SHBC20
Other Names UALS201R7A0097,399-19147
Standard Package 80
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272731-SHBC20-1R7A0097V
Ultra Librarian 3D Model Ultra Librarian SHBC20-1R7A0097V CAD Model

Description

The Kemet SHBC series inductor is a toroidal type with an alloy powder core material. It has an inductance of 97μH and a current rating of 12A. The inductor has a through-hole mounting type and comes in a radial, vertical (open) package/case. The operating temperature range of the inductor is -40°C to 125°C. It has a tolerance of ±20% and a standard package of 80. The inductor is REACH unaffected.
