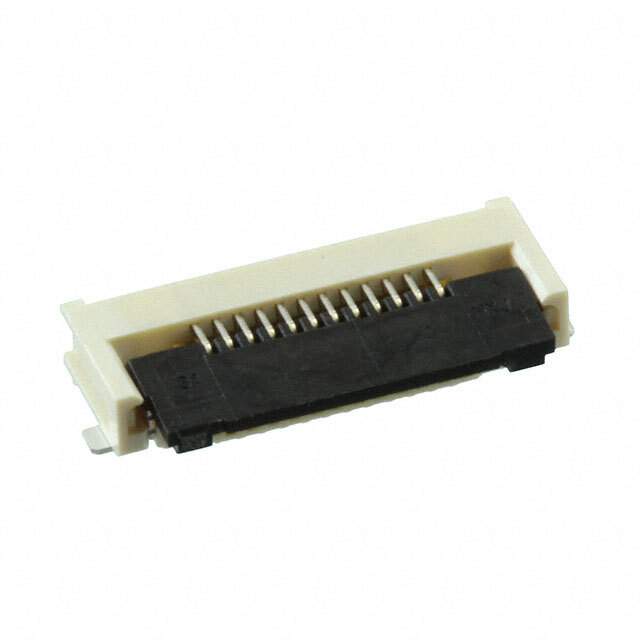

505110-1292 Real Image
Same model may have multiple batches, images only for reference.

505110-1292

Part No 505110-1292
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FFC/FPC Connector SKT 12 POS 0.5mm Solder RA SMD Easy-On™ T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Material Glass, Nylon, Polyamide
Contact Material Bronze, Gold, Nickel
Contact Plating Gold
Country of Origin JP
Current Rating 500 mA
Flammability Rating UL94 V-0
Gender Receptacle
Height 4.15 mm
Housing Material Polymer
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 12
Number of Contacts 12
Number of Pins 12
Number of Positions 12
Number of Rows 1
Orientation Right Angle
Pitch 508 µm
Plating Gold
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536694040
Termination Solder
Voltage Rating 50 V
Win Source Part Number 1136256-505110-1292
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 505110-1292 CAD Model

Description

The Molex Electronic Component is a medium-popularity FFC/FPC connector product that is ideal for various applications and made by Molex.

  • RoHS: compliance
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 50V
  • Current Rating: 500mA
  • Pitch: 508 µm
  • Positions: 12
  • Contact Plating: gold
  • Housing Material: polymer
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -40 °C
