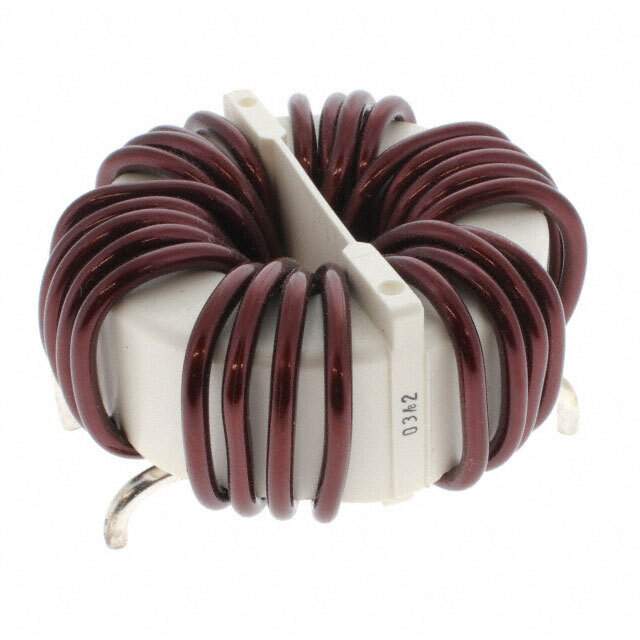

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 30A
DC Resistance (DCR) (Max) 6mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 2.480" Dia (63.00mm)
Height (Max) 1.378" (35.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-30
Other Names 399-SC-30-E100,UALSC30E100000
Standard Package 60
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277088-SC-30-E100
Ultra Librarian 3D Model Ultra Librarian SC-30-E100 CAD Model

Description

This power line filter is a common mode choke designed to filter out unwanted noise from electrical circuits.

  • Voltage Rating: 250V AC and DC
  • Maximum Current: 30A
  • Inductance @ 100kHz: 1mH
  • DC Resistance: 6mOhm
  • Mounting Type: Through-hole
  • Package/Case: Horizontal, no-base, 4 PC pin
  • Operating Temperature Range: -25°C to 120°C
  • Dimension: 2.480 inches in diameter (63.00mm)
  • Series: SC series of common mode chokes from KEMET
