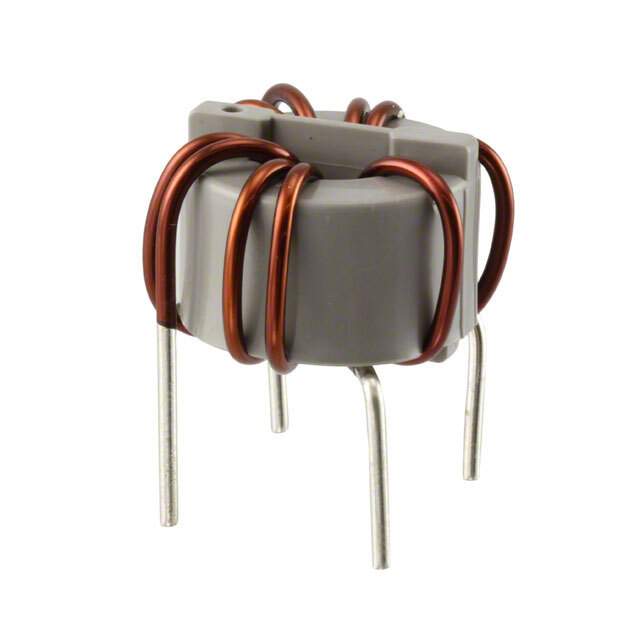

SC-20-D010 Real Image
Same model may have multiple batches, images only for reference.

SC-20-D010

Part No SC-20-D010
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10 µH @ 100 kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 8mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.339" Dia (34.00mm)
Height (Max) 0.906" (23.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-20
Other Names 399-10767,UALSC20D010000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277080-SC-20-D010
Ultra Librarian 3D Model Ultra Librarian SC-20-D010 CAD Model

Description

The KEMET electronic component is a power line filter with 10 µH inductance @ 100 kHz frequency.

  • Win Source Part Number: 1277080-SC-20-D010
  • Voltage Rating: 250V AC and 250V DC
  • Maximum Current Rating: 20A
  • Package: Bulk
  • Standard Package: 200
  • Mounting: Through-hole
  • Package/Case: Horizontal, no base, 4 PC pin
  • Temperature Range: -25°C to 105°C
